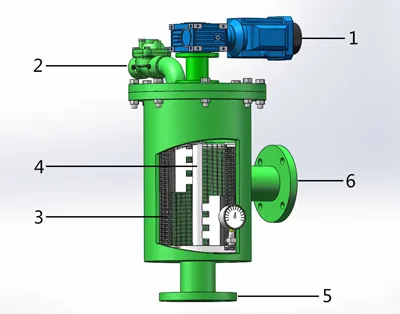

The water flows through the screen and the particles are retained on the inside of the screen of the filter element. The filtered water then flows out through the outlet.
When the particles accumulated to a certain number and the pressure differential increases to the pre-determined level, the flushing cycle starts.
It include two steps: First, the automatic drain valve opens on the drainage outlet. Then, electronic motor drives the cleaning brushes which are inside the screen, the solids are expelled through the drain valve.
Filters continue to supply filtered water even during the flushing cycle. The whole working system is controlled by a smart box which has several control modes: pressure differential, time, manual and PLC.

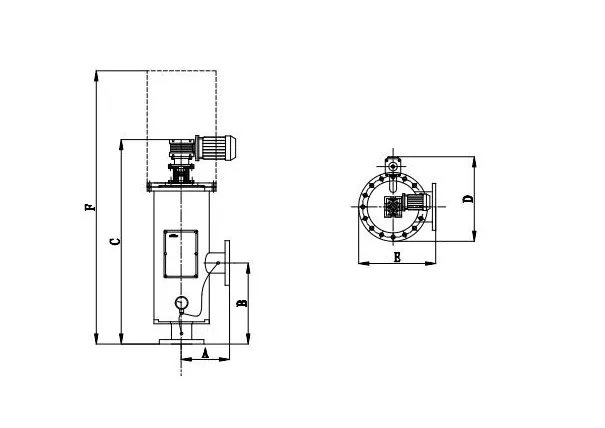

| Model | Water In/Out | A (mm) | B (mm) | C (mm) | D (mm) | Power | Max Flow | Weight |
| DLD-FL-50 | 50 | 240 | 250 | 700 | 560 | 0.12 | 19 | 50 |
| DLD-FL-100 | 100 | 240 | 400 | 950 | 590 | 0.18 | 80 | 105 |
| DLD-FL-200 | 200 | 330 | 590 | 1410 | 680 | 0.25 | 320 | 235 |
| DLD-FL-300 | 300 | 415 | 790 | 1850 | 830 | 0.37 | 710 | 420 |
| DLD-FL-450 | 450 | 510 | 790 | 1980 | 950 | 0.37 | 1600 | 860 |
Specialized in manufacturing water filter systems since 2002. Providing efficient, stable solutions for irrigation and industrial water treatment. Products meet ISO9001 and CE standards.
