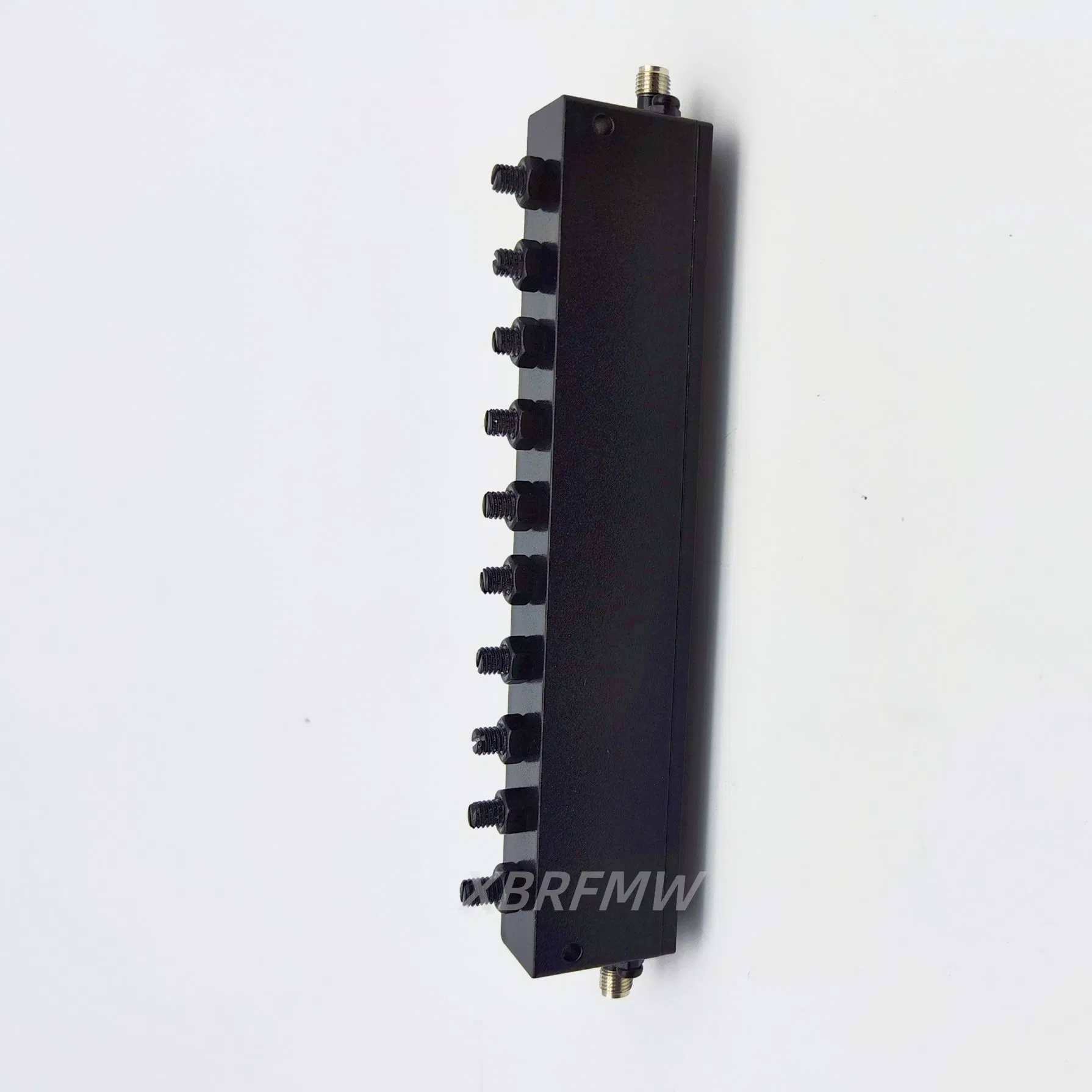

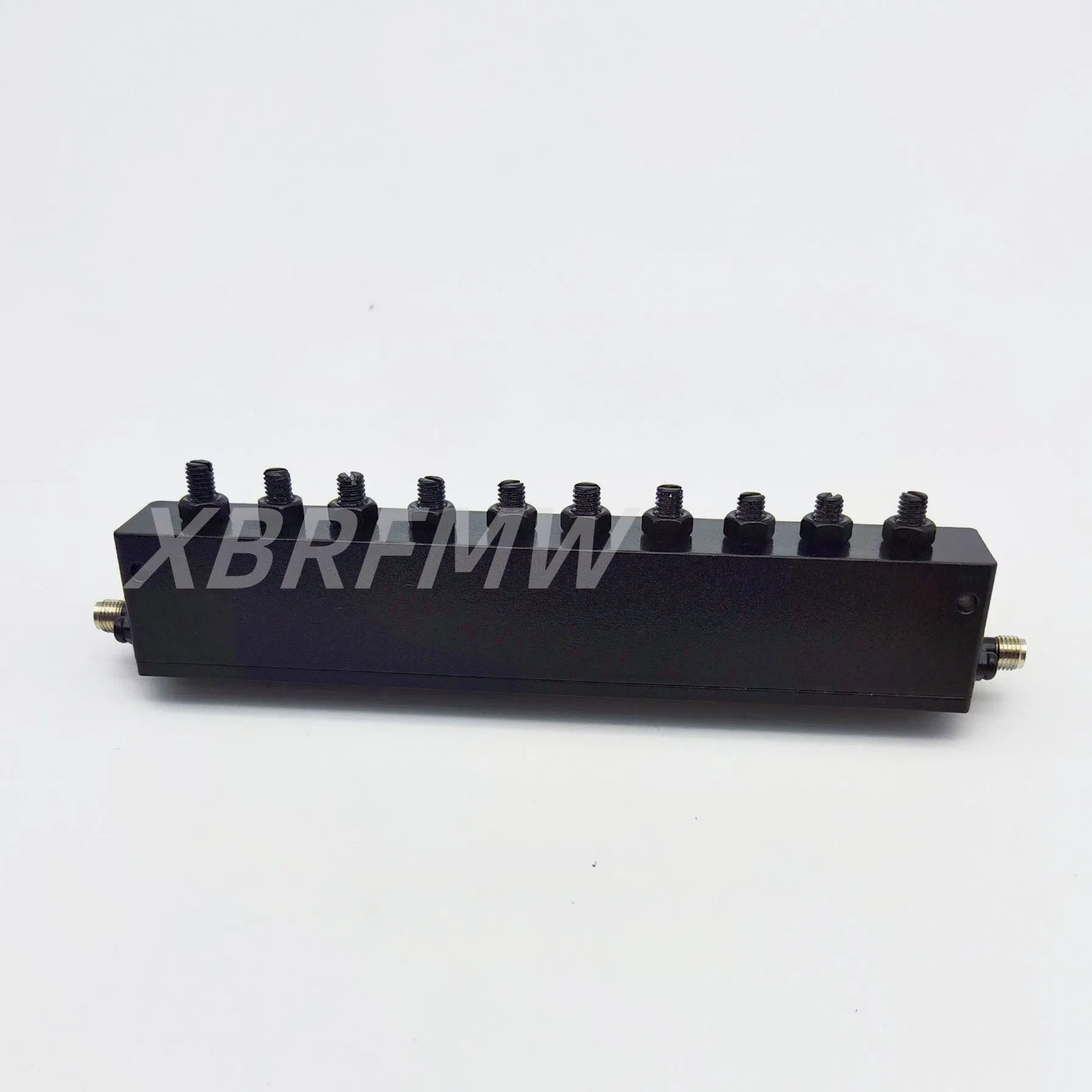

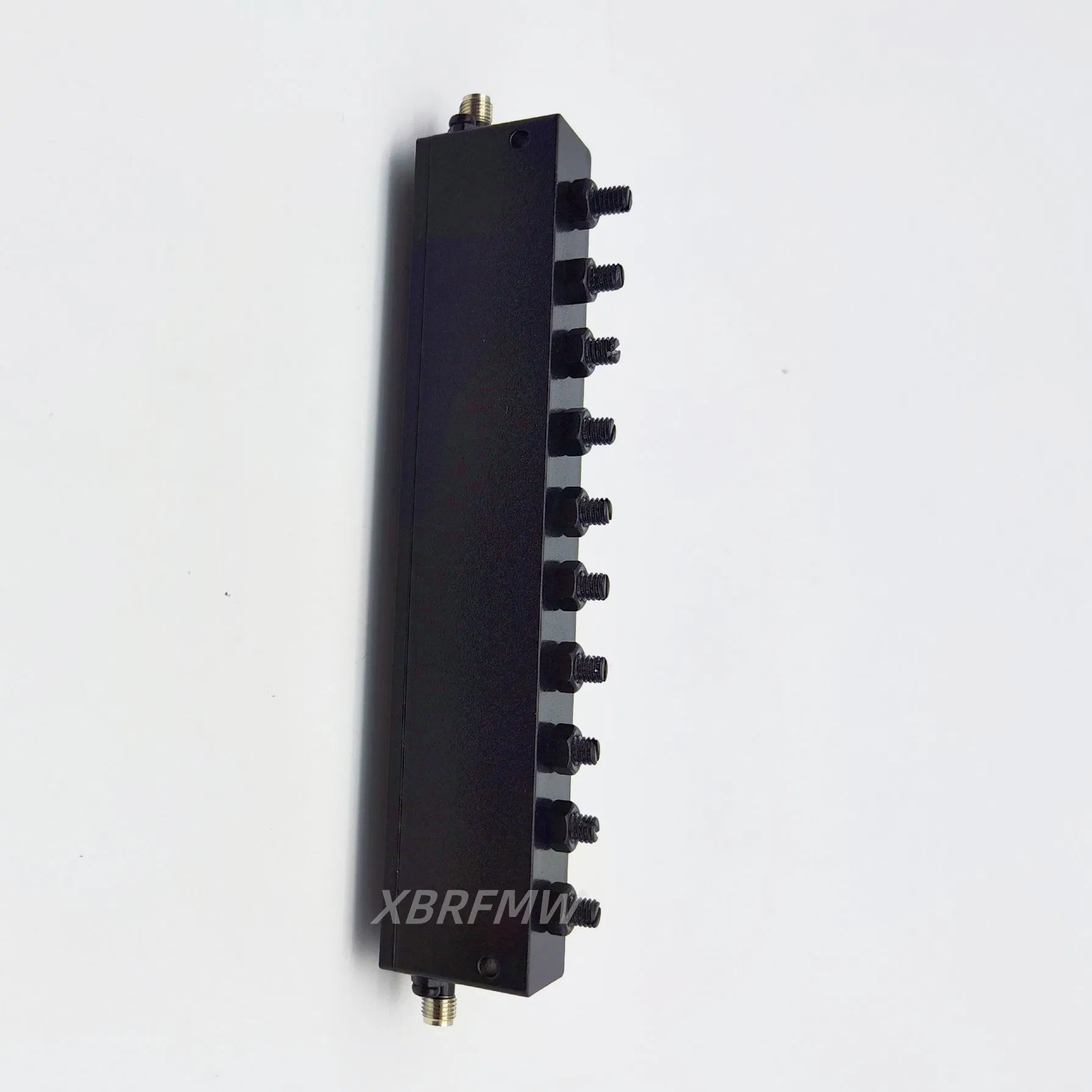

5725-5850 MHz Band Rejection Filter
| ITEM | SPECIFICATION |
|---|---|
| Pass Band Frequency Range | DC-5675 & 5900-8000 MHz |
| Stop Band Frequency Range | 5725-5850 MHz |
| Pass Band Insertion Loss | ≤ 2 dB |
| Stop Band Rejection | ≥ 50 dB |
| Pass Band VSWR / Return Loss | ≥ 12 dB |
| Power Rating | 5 W |
| In/Out Impedance | 50Ω |
| In/Out Connector | SMA-F |
| Surface Finish | Black |
| Operating Temperature | +10 to +40 ºC |
| Dimensions | 150 * 20 * 26.75 mm |

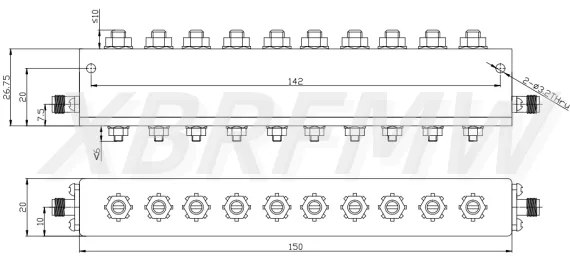

Outline Drawings:
(First angle view, Dimensions Tolerance: ±0.5mm)
Specialized in microwave passive components including low-pass, high-pass, band-pass, and band-stop filters, duplexers, combiners, and attenuators. Utilizing LC, coaxial cavity, waveguide, and microstrip structures.

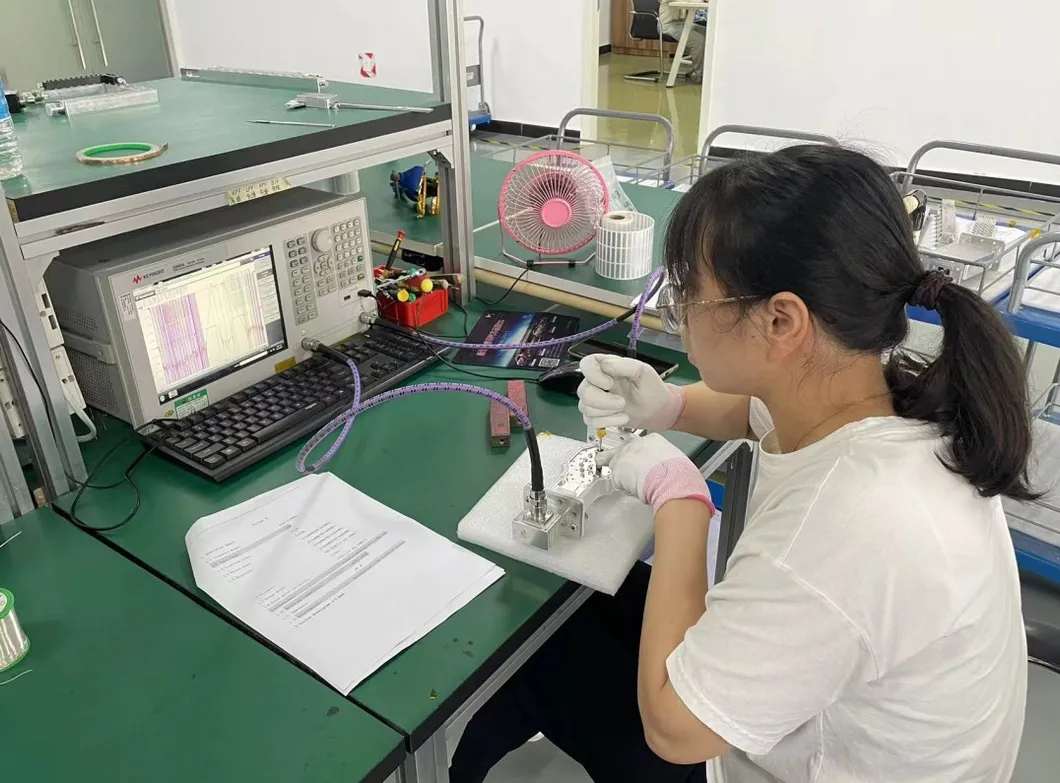

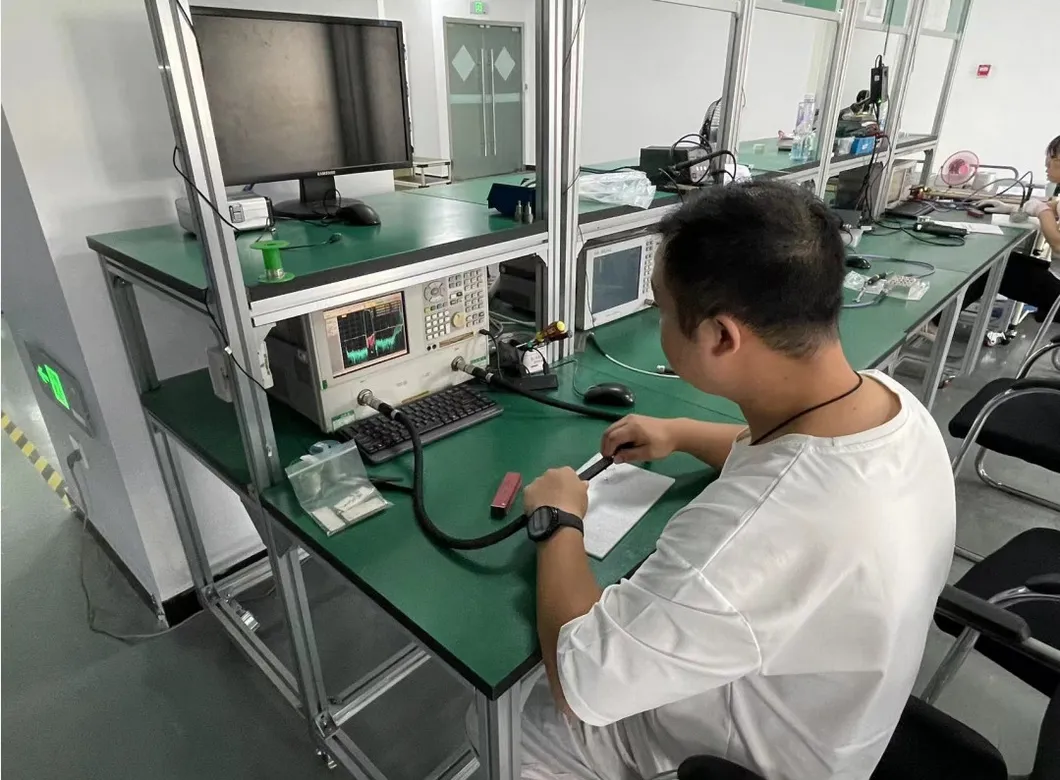

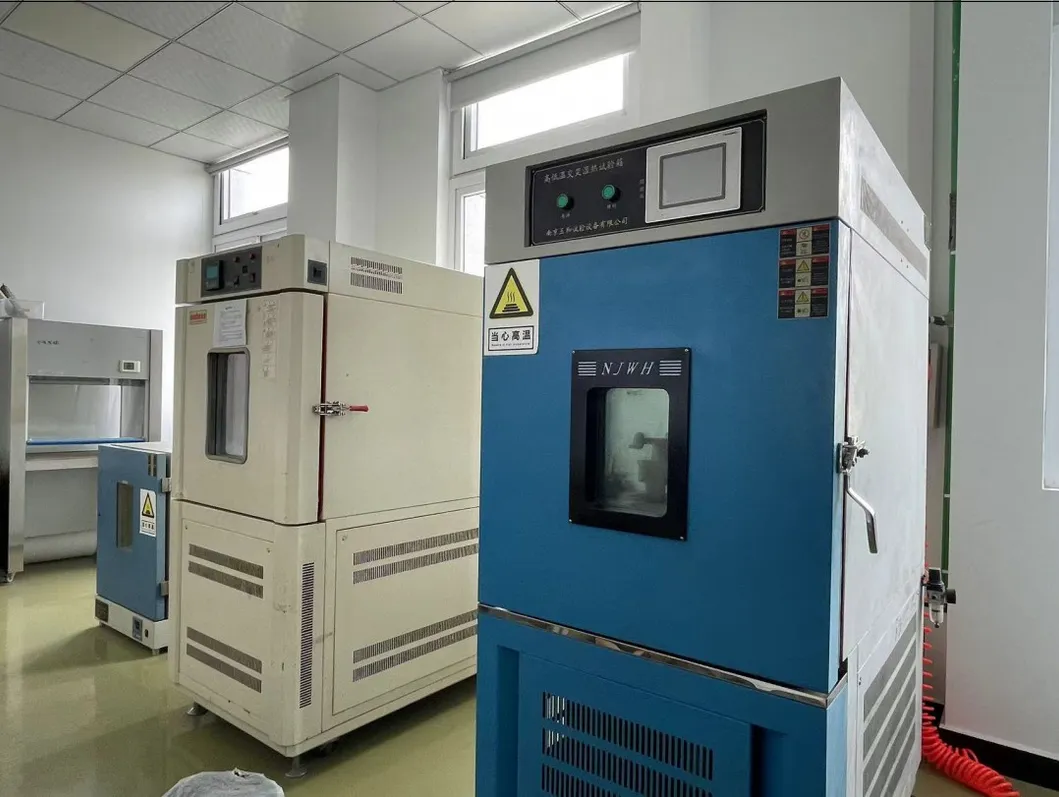

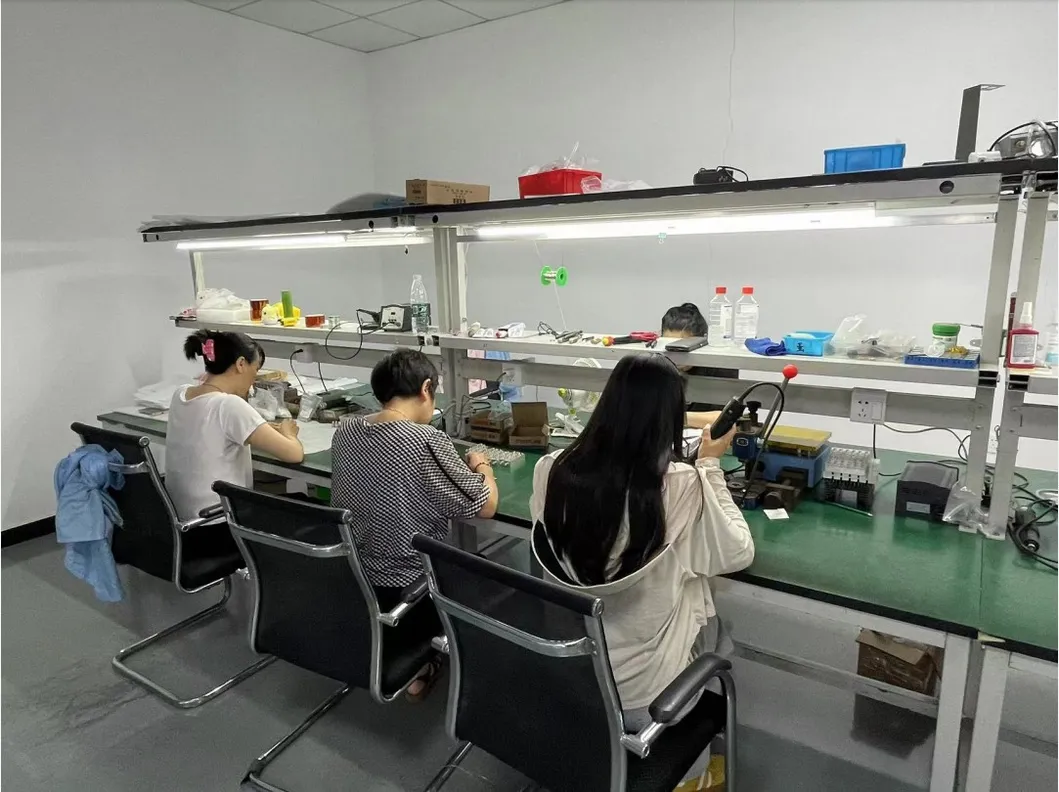

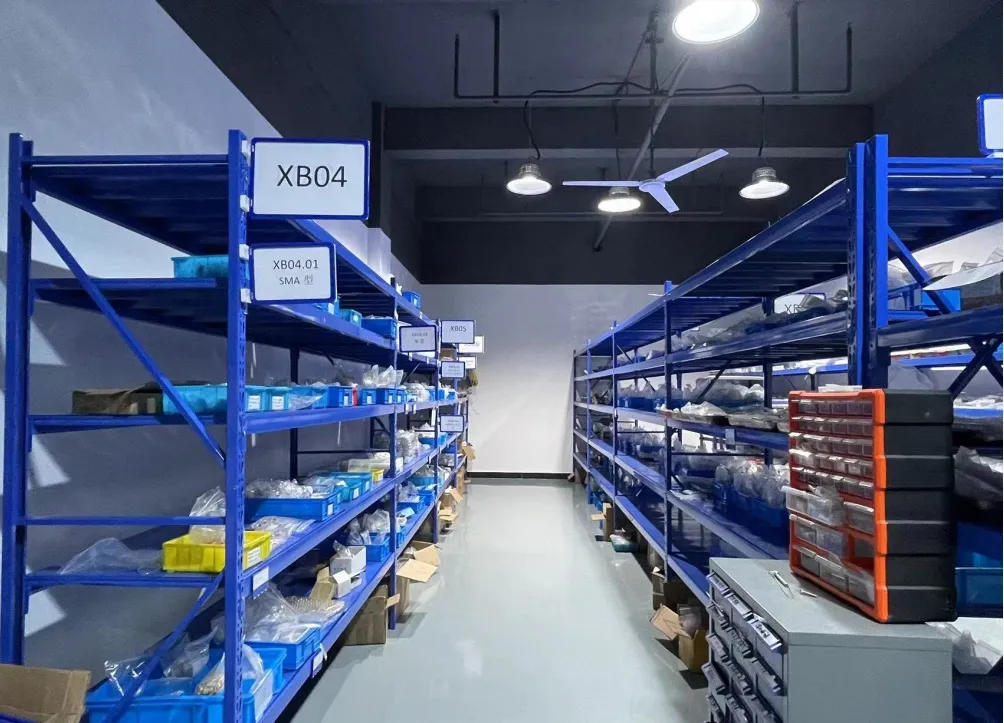

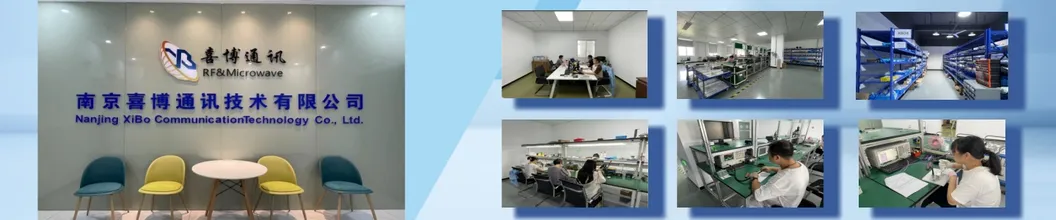

Equipped with advanced R&D and production facilities, including high/low temperature chambers and 50G/40G vector network analyzers, with a monthly capacity exceeding 10,000 units.
Available Ports: Shanghai, Ningbo, Guangzhou, Tianjin
