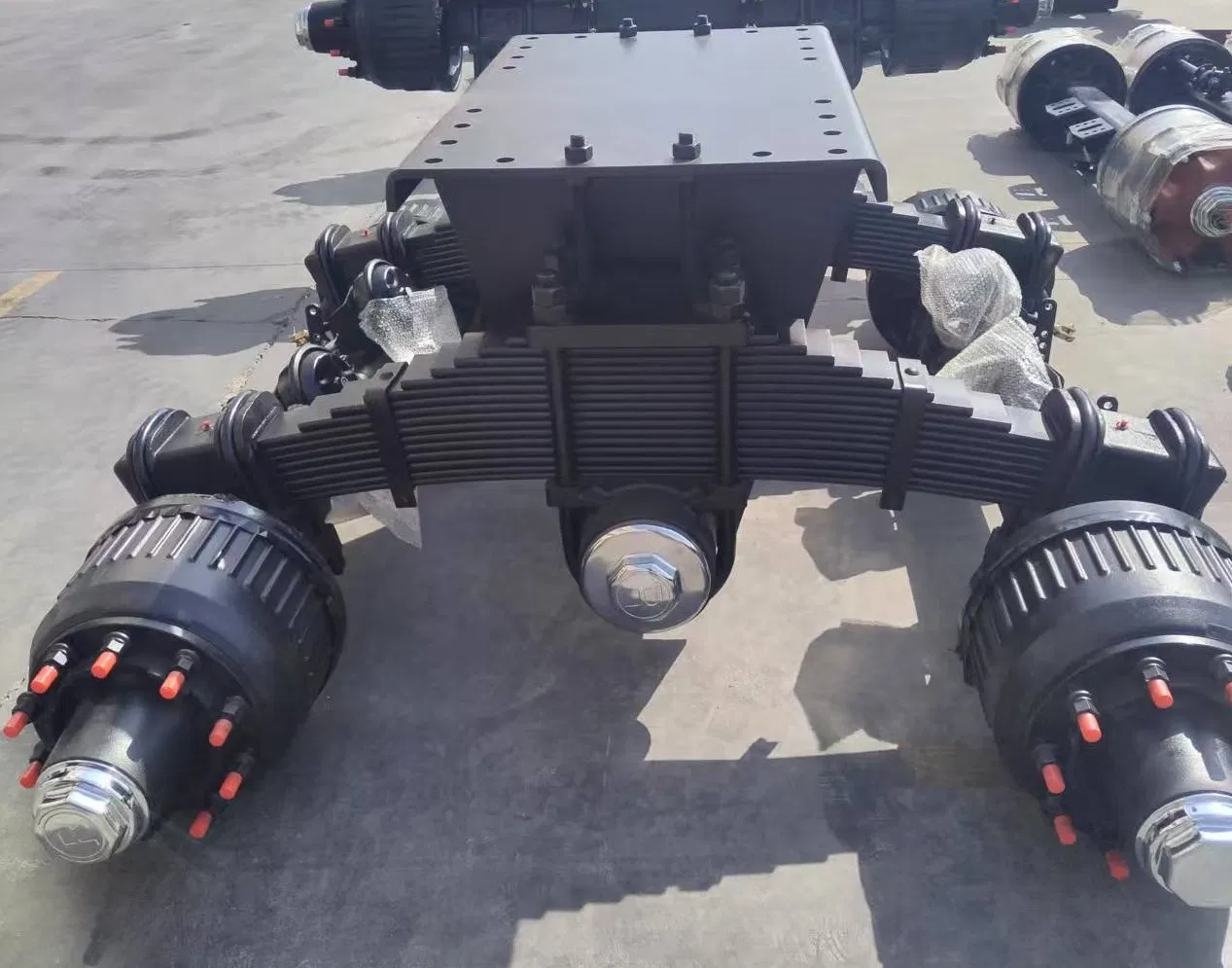

32t Good Quality Semi-Trailer Axle Bogie Suspension Germany Type Bogie Suspension
32t Good Quality Semi-Trailer Axle Bogie Suspension Germany Type Bogie Suspension
32t Good Quality Semi-Trailer Axle Bogie Suspension Germany Type Bogie Suspension
32t Good Quality Semi-Trailer Axle Bogie Suspension Germany Type Bogie Suspension
32t Good Quality Semi-Trailer Axle Bogie Suspension Germany Type Bogie Suspension
1 / 5
32t Good Quality Semi-Trailer Axle Bogie Suspension Germany Type Bogie Suspension
32t Good Quality Semi-Trailer Axle Bogie Suspension Germany Type Bogie Suspension
32t Good Quality Semi-Trailer Axle Bogie Suspension Germany Type Bogie Suspension
32t Good Quality Semi-Trailer Axle Bogie Suspension Germany Type Bogie Suspension
32t Good Quality Semi-Trailer Axle Bogie Suspension Germany Type Bogie Suspension

32t Good Quality Semi-Trailer Axle Bogie Suspension Germany Type Bogie Suspension

Customization: Available
Loading Weight: 24t 28t 32t 36t
Material: New
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
Bogie Suspension
Number of Axles
Tandem Axle Suspension
Part Type
Germany Type Bogie Suspension
Capacity
24t 28t 32t 36t
Axle Beam
Square 150X14
Track Length
1870mm
Certification
ISO, ISO/Ts16949
Condition
New
⚙️

Product Parameters

Rated Load (kg) Weight (kg) Bearing Type Axle Beam Brake Size Track Length A P.C.D. Wheel Base B
24000202033118/33213SQUARE 150*14420*1801870mm3351385
24000208033118/33213SQUARE 150*14420*2001870mm3351385
28000245533215/32219SQUARE 150*14420*2001870mm3351550
32000252032314/32222SQUARE 150*16420*2001870mm3351550
36000260032314/32222SQUARE 150*18420*2201870mm3351550
🚛

Germany Bogie Suspension

Popular in Dubai Trailer Parts, our Germany Type Bogie Suspension is designed for heavy-duty performance and reliability.

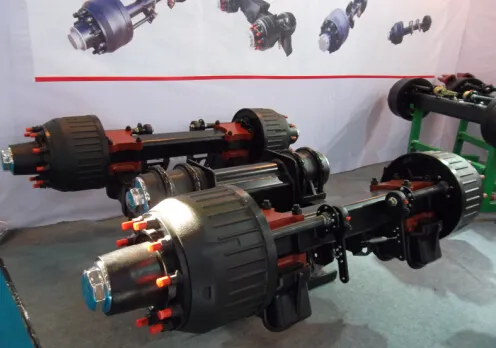

Germany Type Bogie Suspension

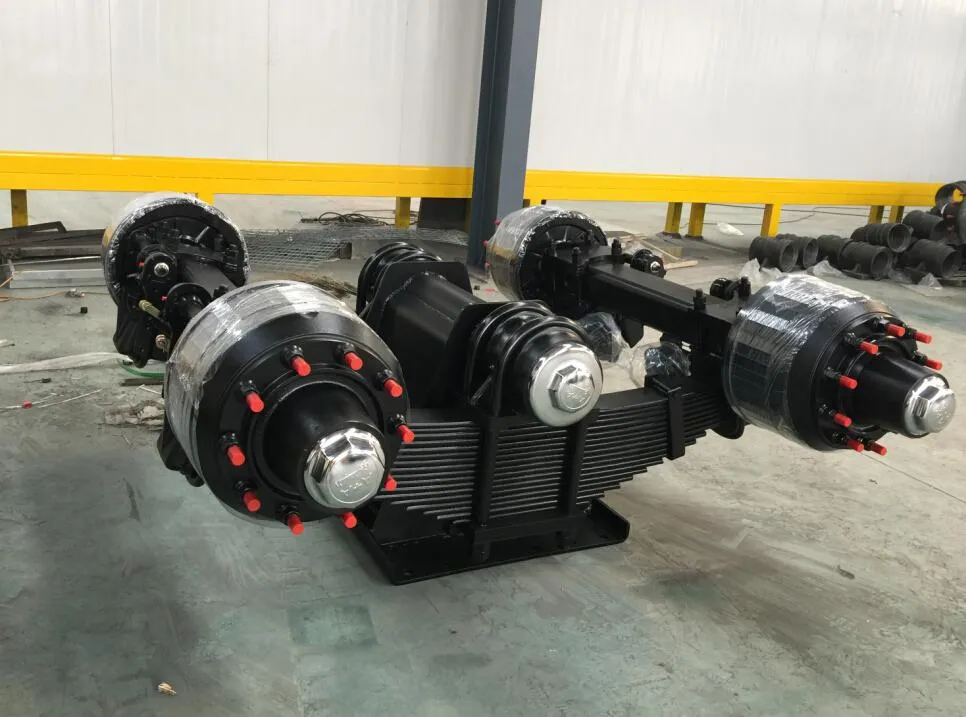

High Quality Axle Suspension

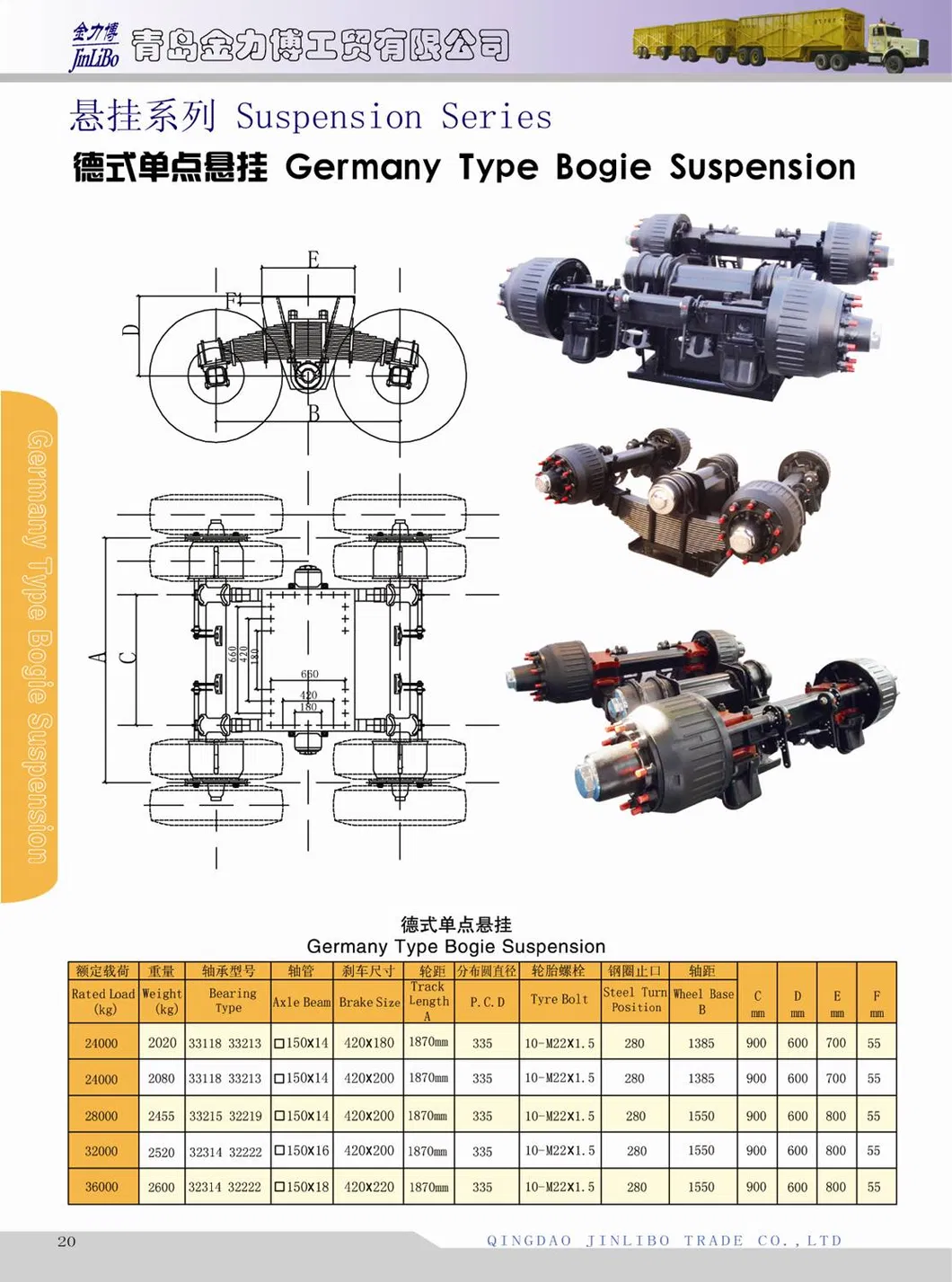

Technical Drawing Bogie

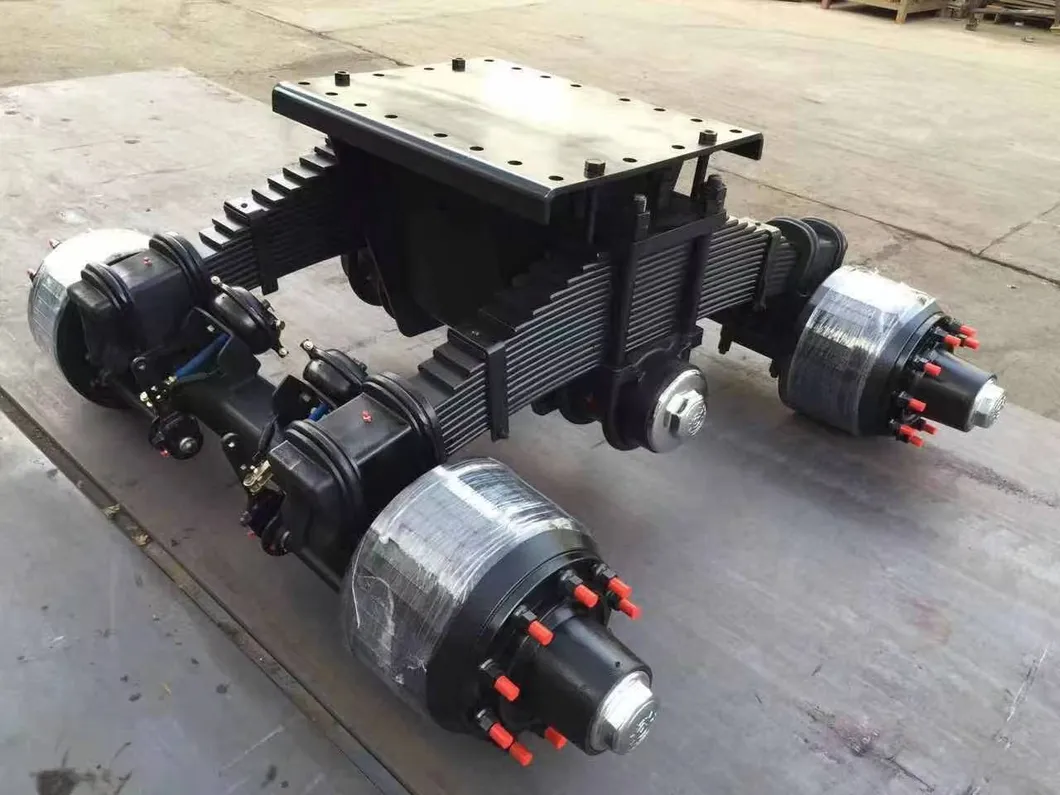

Production View

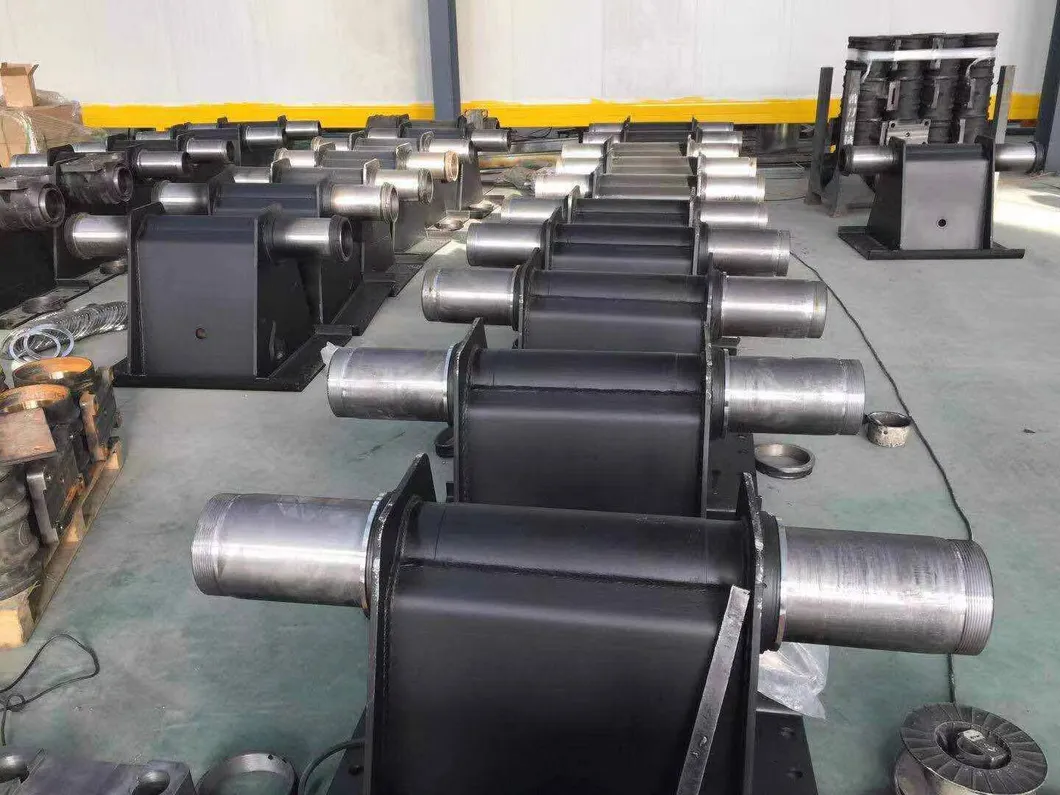

Detail View

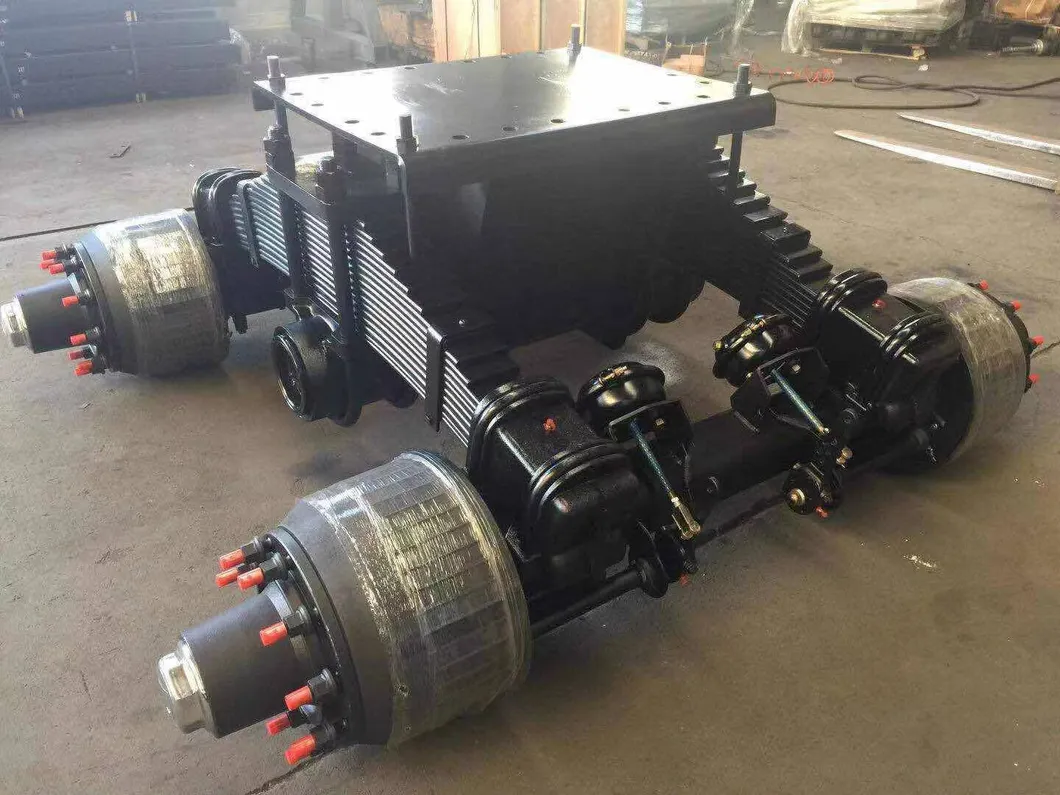

Installation View
🏢

Performance Characteristics

Our semi-trailer axles and parts are manufactured using sophisticated overseas equipment and hold ISO9001:2000 certification.

  • Special heat-treat, low-alloy steel axle beam with high load ability.
  • High quality alloy solid inserted spindle for superior fatigue capability.
  • High performance premium non-asbestos brake linings for extended service life.
  • Easy ABS installation design.
  • Camshaft with special seals to prevent grease entry into the brake drum.
  • Mobil grease lubricant for reduced maintenance frequency.
📦

Scope of Business

  • Axles: German, English, American, Spoke, Agriculture types.
  • Suspension: Bogie, One point, Rigid, Machinery types.
  • Accessories: Landing gear, Fifth wheel (2'' & 3.5''), King pin, Hubs, Drums.
❓

Frequently Asked Questions

Are you a factory or a trading company?
We are a factory with an integrated sales team and offices to help cooperative partners determine the best product choices for their specific needs.
What is the standard delivery time for orders?
In general, the delivery time is between 15-20 days. We prioritize guaranteed quality and timely delivery.
What payment methods do you accept?
We accept L/C, T/T, Unionpay, and DP. We are also open to discussing other convenient payment options.
What is the recommended shipping method?
Due to cost-effectiveness and safety, we generally advise sea transportation, though we respect your preference for other methods.
Do your products meet international quality standards?
Yes, we hold ISO9001:2000 and ISO/Ts16949 certifications, ensuring our management and production systems meet high quality stipulations.
How is the bogie suspension packaged for shipping?

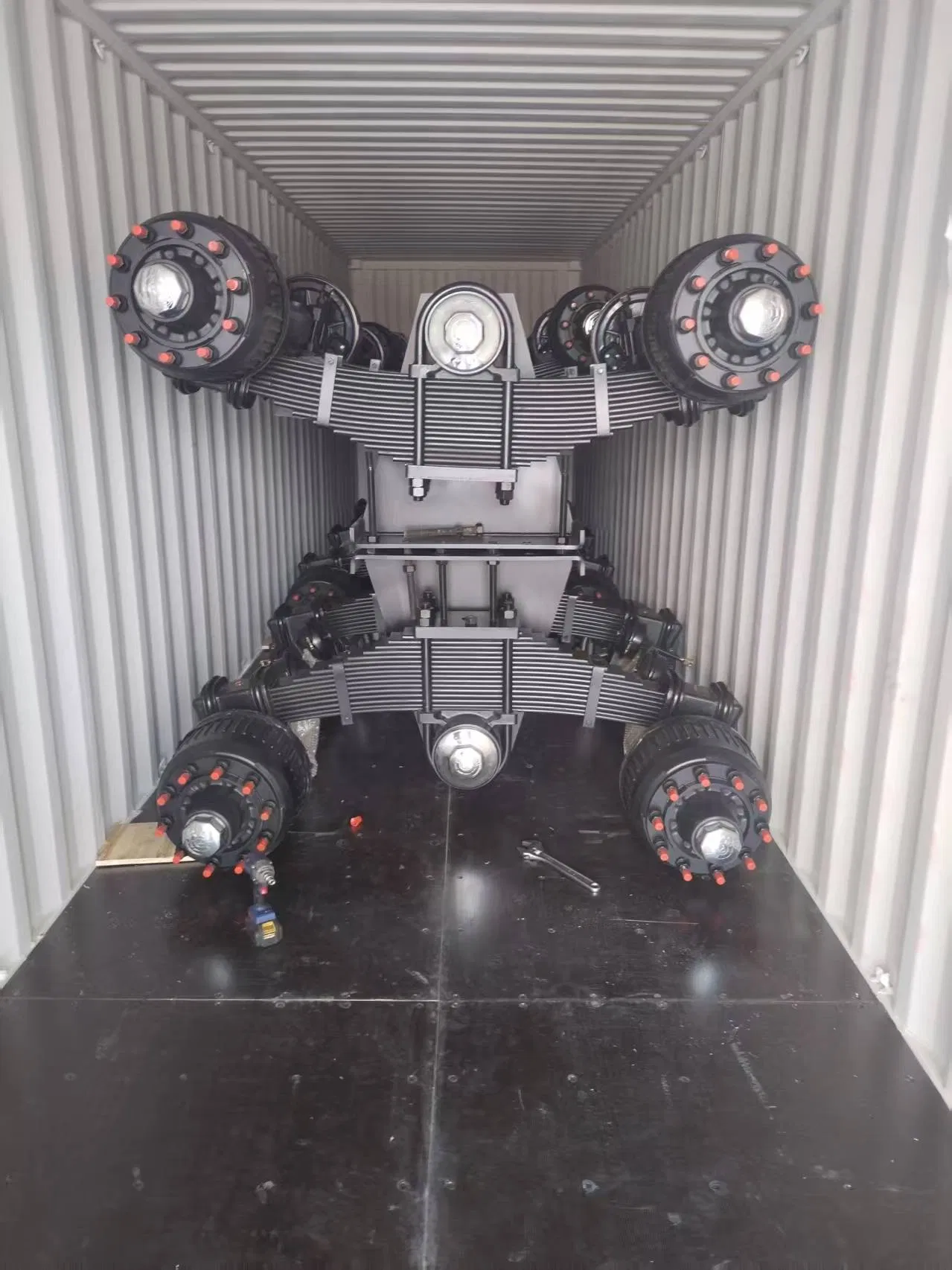

We ship in bulk or as requested. Typically, one 20-foot container can load 6 sets of suspension assemblies or 12 sets without installation.
