Product Description

ℹ️

Basic Information

Model NO.:Light curtain
Type:Safety System
Suitable for:Elevator
Speed:2.00-3.50m/s
Occasions:Public Traffic
Package:Wooden Cases
Specification:2150*720*830mm
Origin:China
Capacity:500000 Pieces/Year
HS Code:8431310090
📦

Product Description

Light Curtain Introduction

Delve into the exquisite details of our product below:

Model No AFT-620/917A AFT-632/917A
Number of diodes1732
Distance between diodes116mm58mm
Maximum beams (≥400mm)96 beams154 beams
Minimum beams (<400mm)33 beams94 beams
Highest beam1823mm
Size9mm(T) x 24mm(W) x 2000mm(H)
Detecting distance0-4000mm
Cable reliability20 million door movements
Light immunity≥ 50,000 LUX
Operating temperature-10ºC ~ +65ºC
IP RatingIP54

Power Supply Unit Specification

Voltages10-35V DC / 110V AC / 220V AC ± 20%
Power consumption4VA
Case materialSteel and Aluminium
Relay contact typeCOM, 1 NO 1NC
🖼️

Authentic Real-Life Imagery

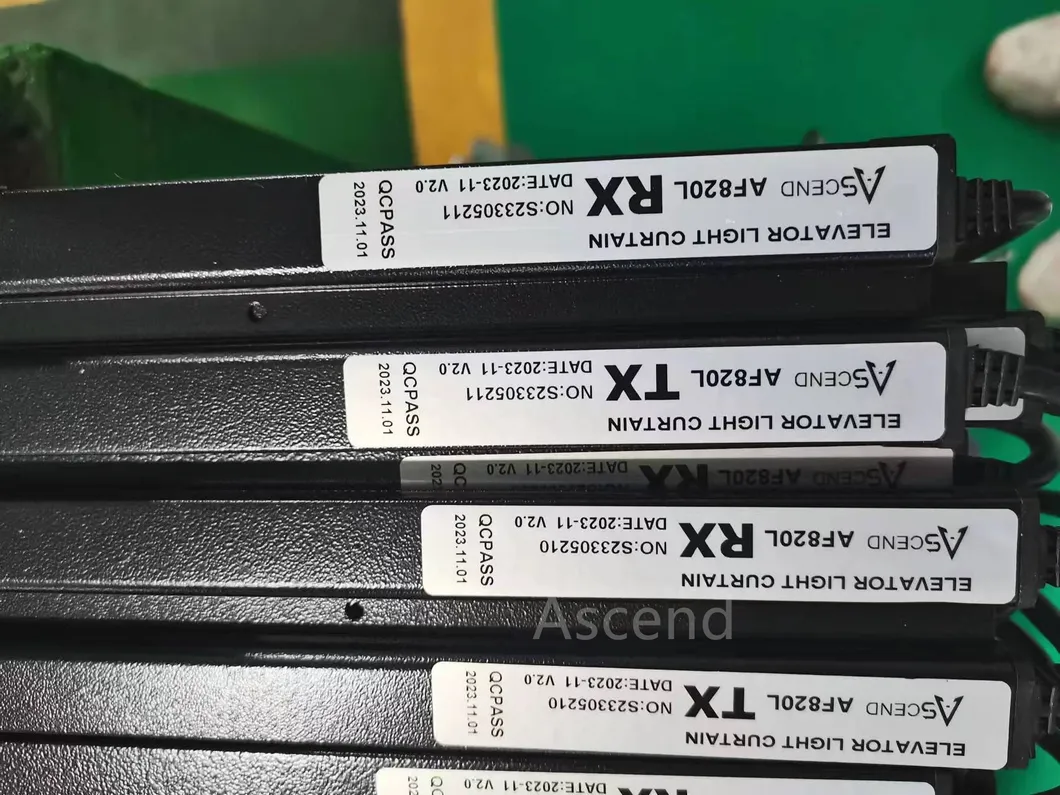

Elevator Light Curtain Image 1
Elevator Light Curtain Image 2
🛠️

Main Products Portfolio

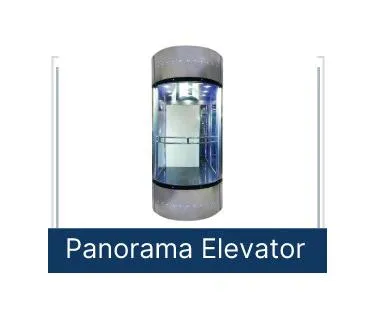

Product 1

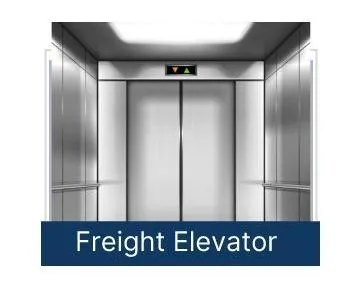

Product 2

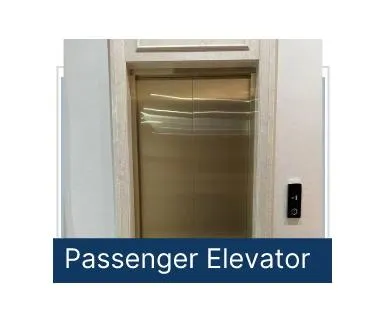

Product 3

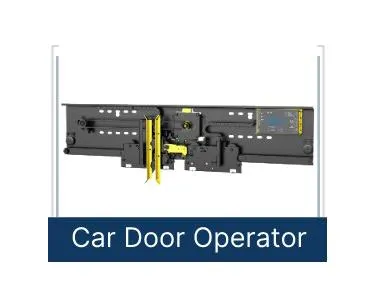

Product 4

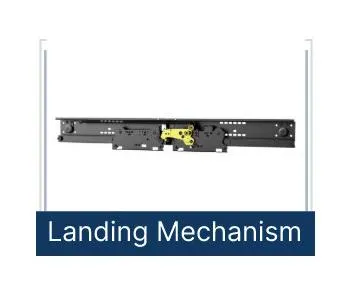

Product 5

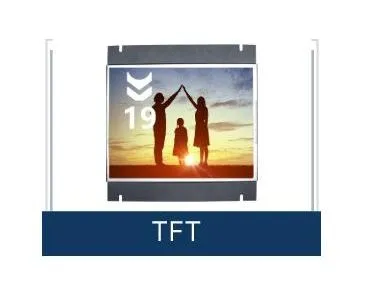

Product 6
🏢

Company & Production

Company Profile

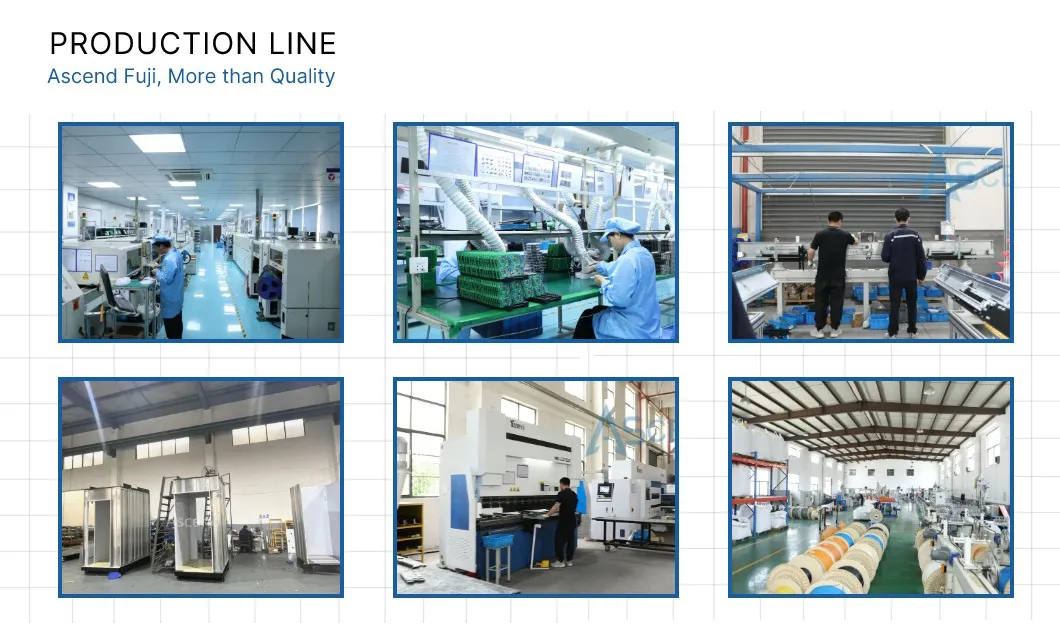

Production Line
📜

Certifications & Logistics

Certifications
Logistics
❓

FAQ

1. Why choose our elevator solutions?
We offer 15 years of industry expertise with a professional technical team capable of solving complex shaft space requirements for new installations and providing aesthetic, high-quality customized decorations.
2. What safety features protect against door-related accidents?
We use dual-line protection: a light curtain sensor to automatically reopen doors upon sensing obstacles, and a door inverter that triggers reopening if it meets a 150N resistance.
3. How does the system prevent the elevator from falling?
If the elevator speed exceeds 1.15 times the rated speed, the speed governor and tension device activate the safety gear to brake the guide rail and stop the fall.
4. How is upward overspeeding prevented?
When upward speed exceeds 1.15 times the limit, the control cabinet signals the traction machine to apply brakes immediately, ensuring the car stops safely.
5. Are the safety components certified?
Yes, all our critical safety components carry CE and EAC certifications, meeting international standards for elevator safety.
6. What is the reliability of the light curtain cabling?
The light curtain cables are engineered for high durability, tested to withstand up to 20 million door movements.
