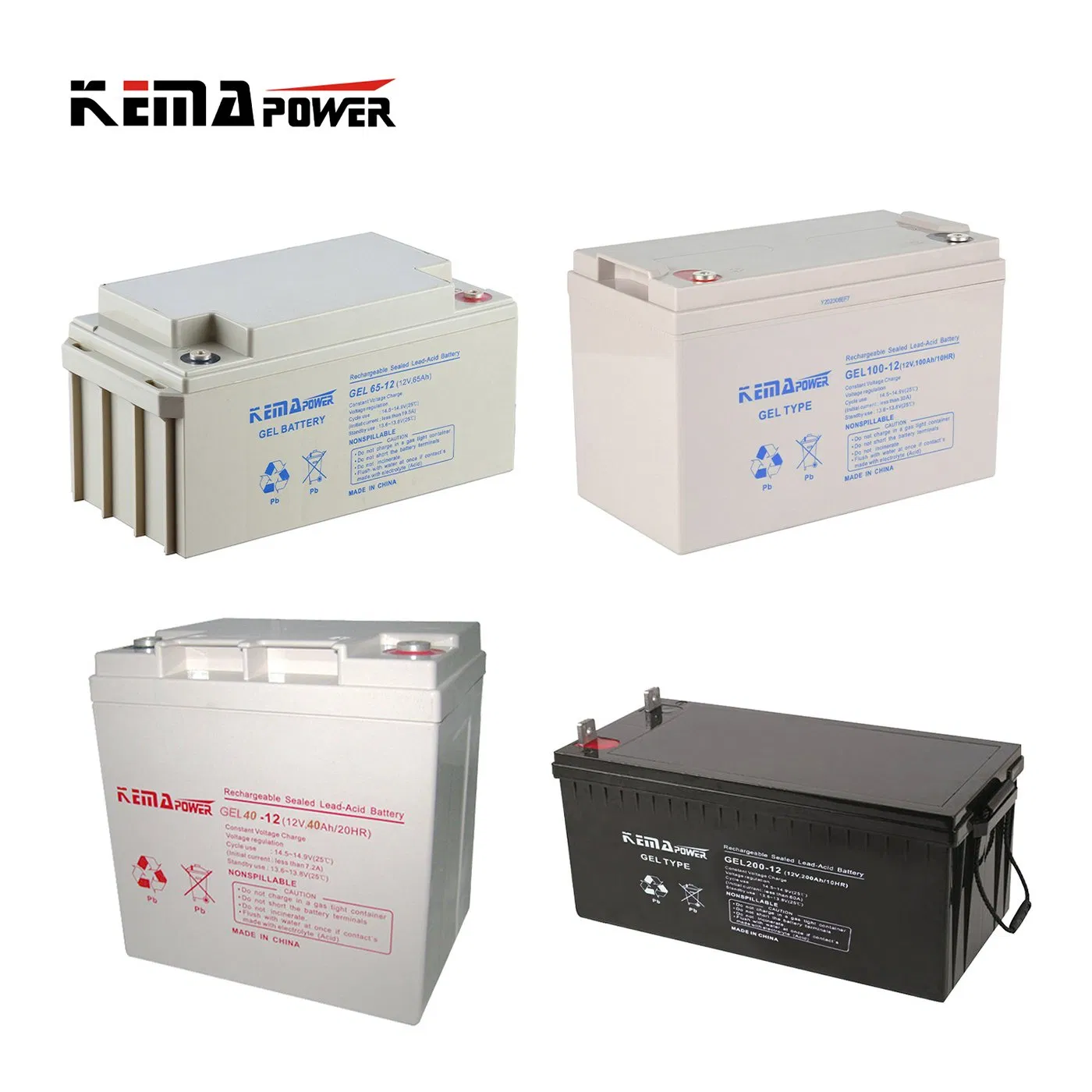

| BATTERY MODEL | Voltage | Capacity | Resistance | Charge Voltage (VDC) | Current | Product Size (MM) | Weight | Terminal | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (VDC) | (Ah) | (mΩ) | Equalization | Float | Max Amp | L | W | H | T/H | KG | ||
| GEL24-12 | 12 | 24 | <=13 | 14.4-15 | 13.65 | 6A | 166 | 125 | 175 | 182 | 8.00 | M6 |
| GEL40-12 | 12 | 40 | <=8 | 14.4-15 | 13.65 | 12A | 197 | 165 | 170 | 182 | 12.00 | M6 |

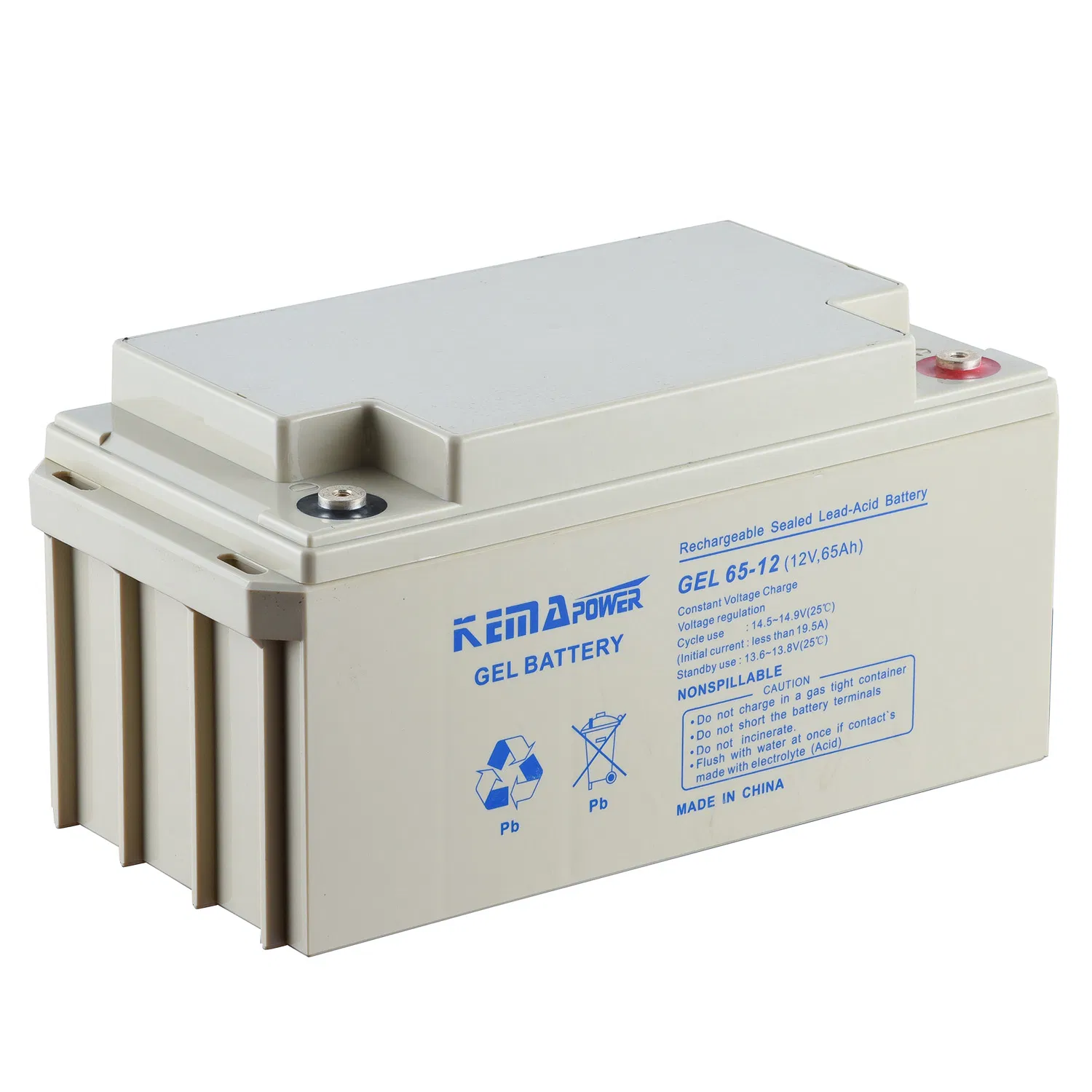

| GEL65-12 | 12 | 65 | <=6.1 | 14.4-15 | 13.65 | 16.25A | 350 | 166 | 178 | 178 | 21.00 | M6 |

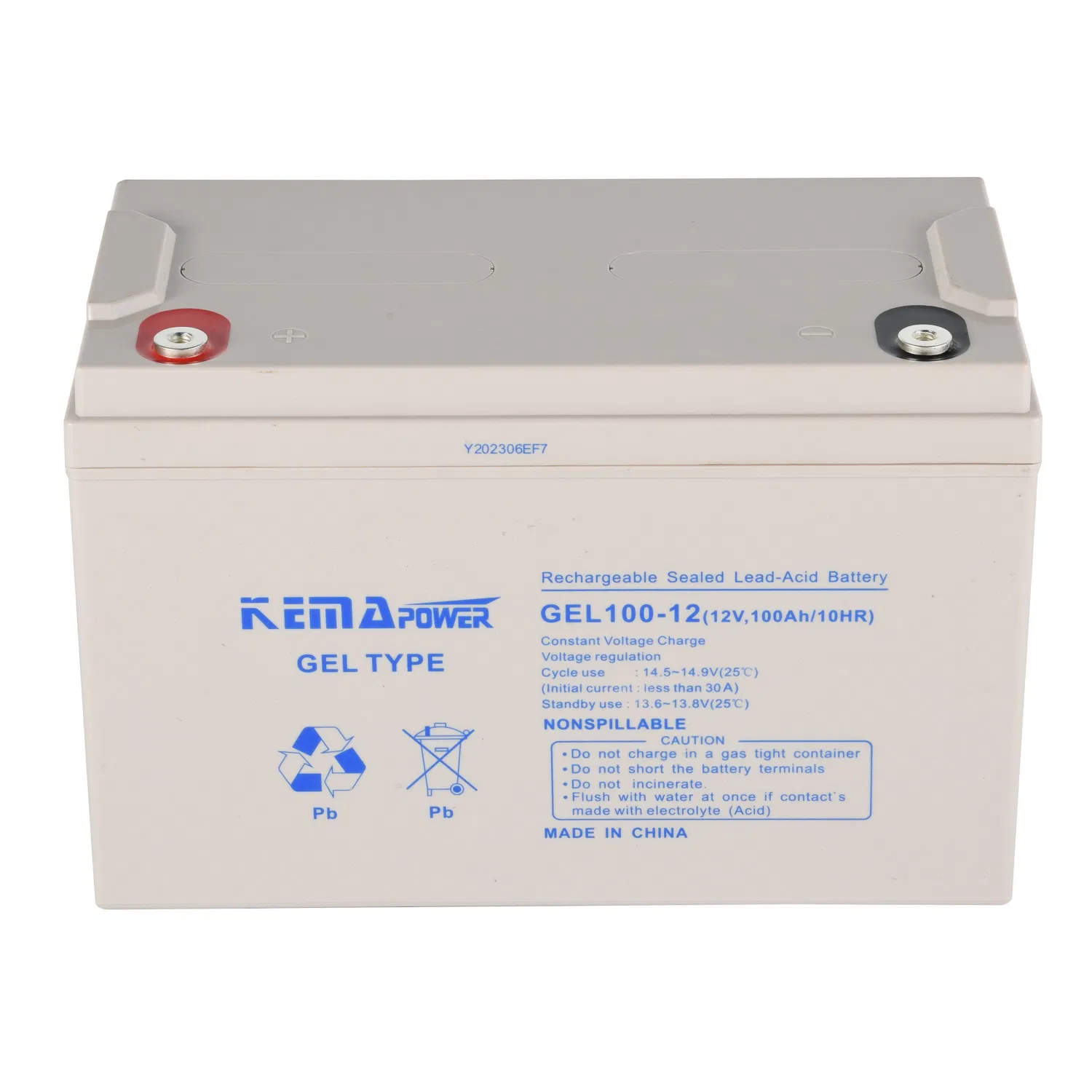

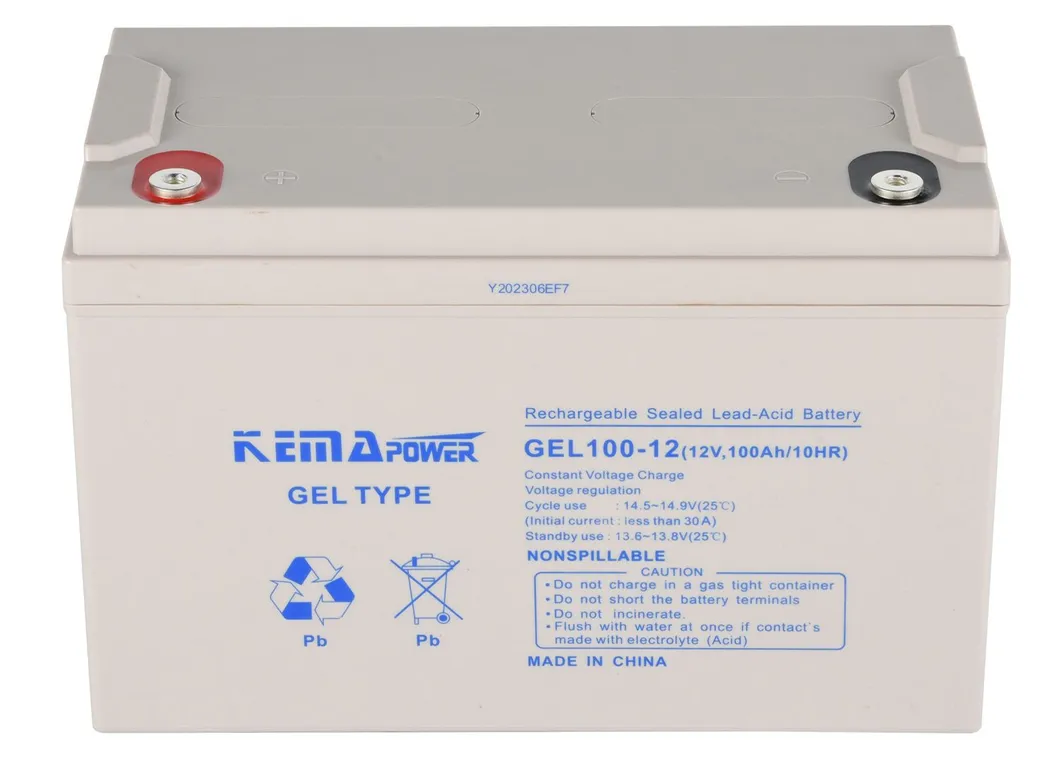

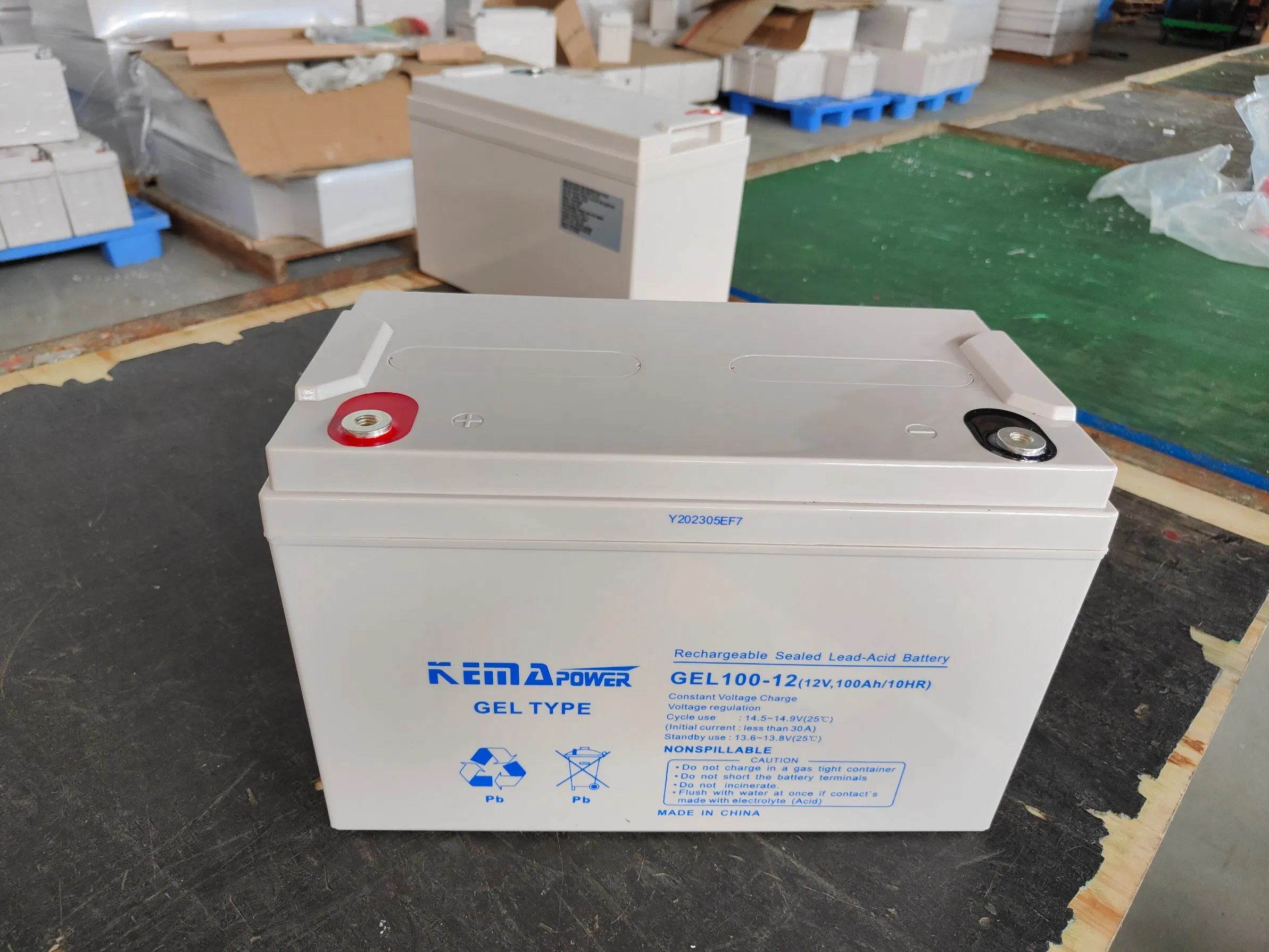

| GEL100-12D-17 | 12 | 100 | <=5 | 14.4-15 | 13.65 | 25A | 330 | 173 | 220 | 240 | 28.50 | M8 |
| GEL150-12-17 | 12 | 150 | <=3 | 14.4-15 | 13.65 | 35A | 485 | 171 | 241 | 241 | 43.00 | M8 |

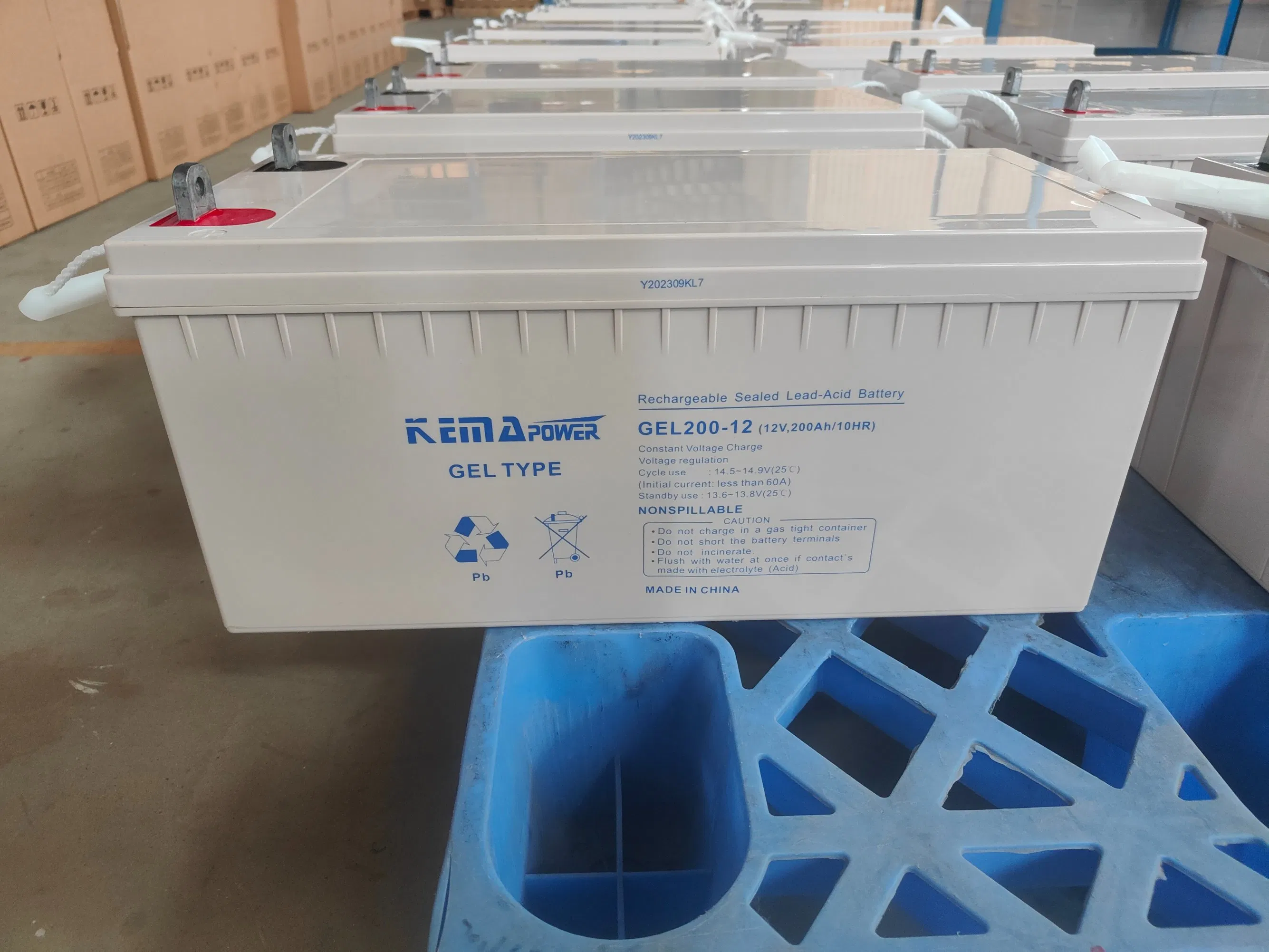

| GEL200-12-17 | 12 | 200 | <=3 | 14.4-15 | 13.65 | 50A | 520 | 240 | 224 | 244 | 63.00 | M8 |
Note: 10 year service life; ABS shell; parameters subject to change without notice.
Our flat plate GEL VRLA batteries are designed with a high-quality Pb-Ca multi-alloy and imported silicon dioxide material, providing a design service life of up to 10 years under optimal conditions.
No, these batteries are completely maintenance-free. They utilize high-sealed reaction efficiency and a water reproduction performance that eliminates the need for any water compensation during use.
The batteries are highly adaptable to various environments and can be used safely within a temperature range of -25ºC to 50ºC.
The battery features a double seal design on the cover and poles to prevent electrolyte leakage. Additionally, it is equipped with a reliable gas pressure venting system and an anti-explosion device for enhanced safety.
Yes. As they contain no free electrolyte and are fully sealed, they are classified as nonhazardous materials and can be safely transported by sea or railway.
These batteries are ideal for energy storage, particularly in Solar Power Systems, and are available in capacities ranging from 24AH to 250AH.
