Piezoelectric ceramic sheet, commonly known as buzzers. A piezoelectric ceramic sheet is an electronic sound-producing component. Between two copper circular electrodes, a piezoelectric ceramic material is placed. Due to its simple structure and low cost, piezoelectric ceramic sheets are widely used in toys, audio electronic watches, electronic instruments, and timers.
When an electric voltage is applied to a piezoelectric ceramic, it undergoes mechanical deformation. Conversely, when subjected to vibration, it generates an electric charge. This dual effect allows piezoelectric ceramics to function effectively as ultrasonic wave sensors.
| Parameter | Symbol | Unit | P-4 | P-8 | P-5A18 | P-5H32 | FT-48 |
|---|---|---|---|---|---|---|---|
| Relative Dielectric Constant | ∑T | - | 1150 | 1200 | 1800 | 3000 | 4800 |
| Dielectric Loss | Tgδ | % | 0.5 | 0.4 | 2 | 2 | 2.3 |
| Piezoelectric Strain | D33 | 10-¹²C/N | 280 | 240 | 450 | 600 | 730 |
| Curie Temperature | Tc | ºC | 310 | 320 | 310 | 260 | 204 |

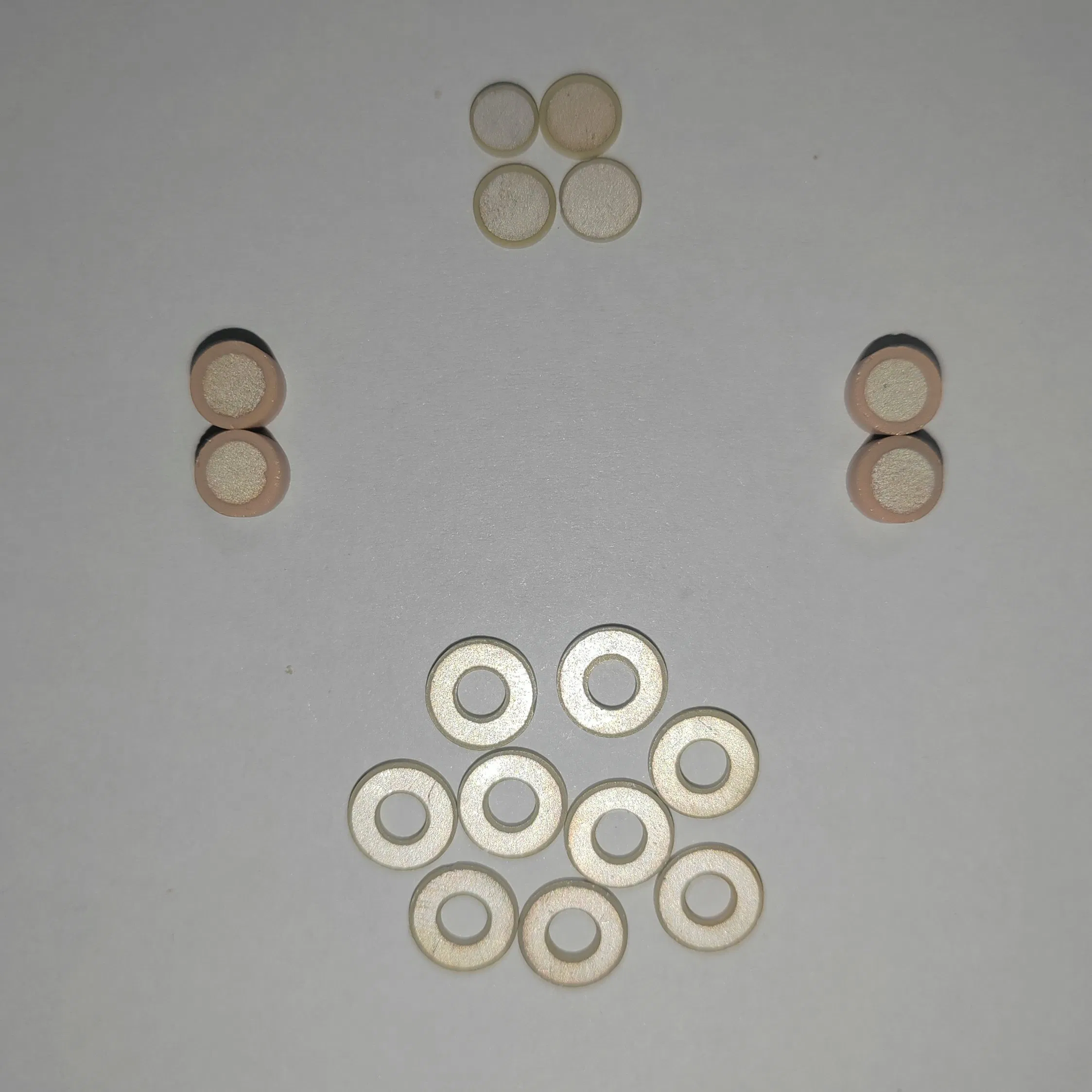

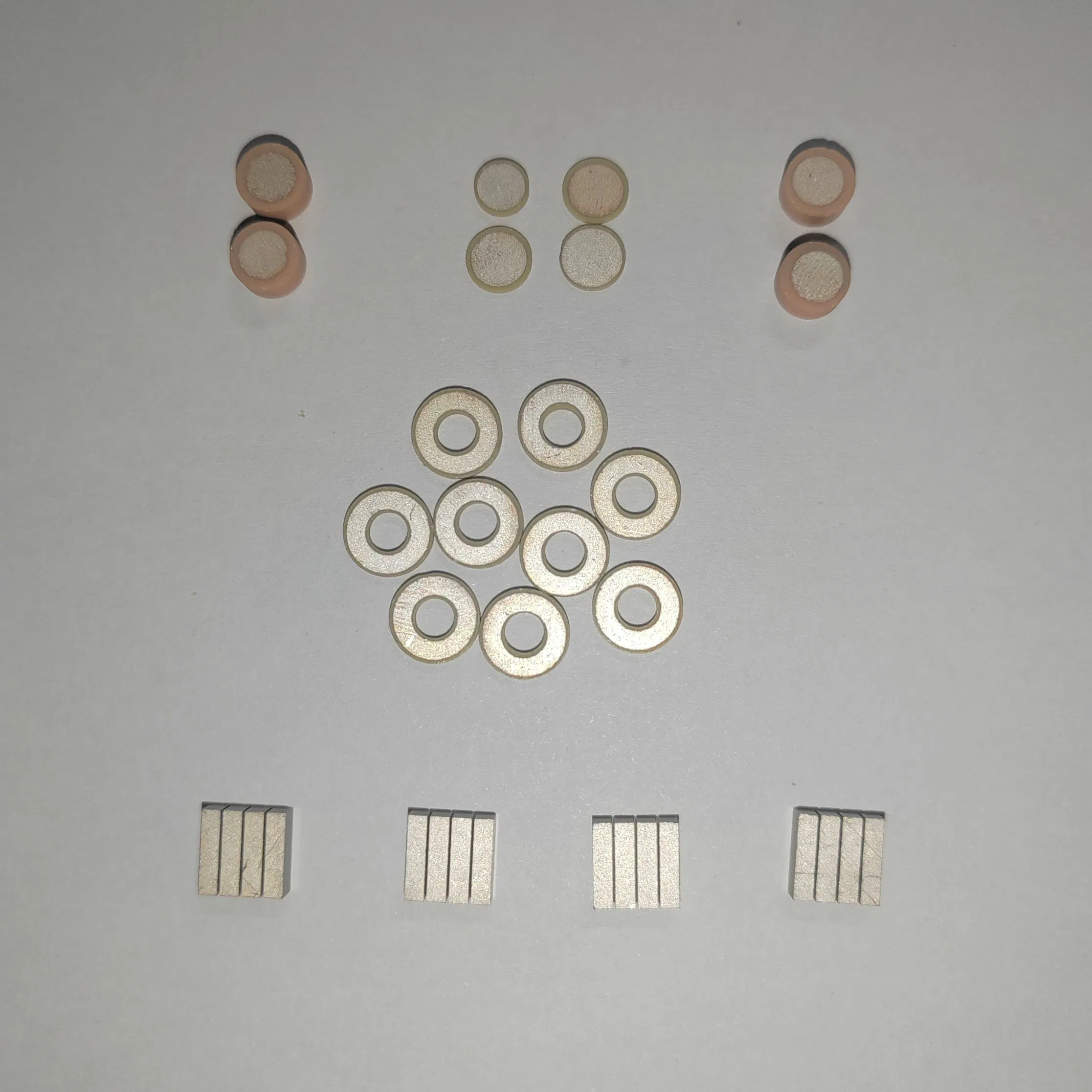

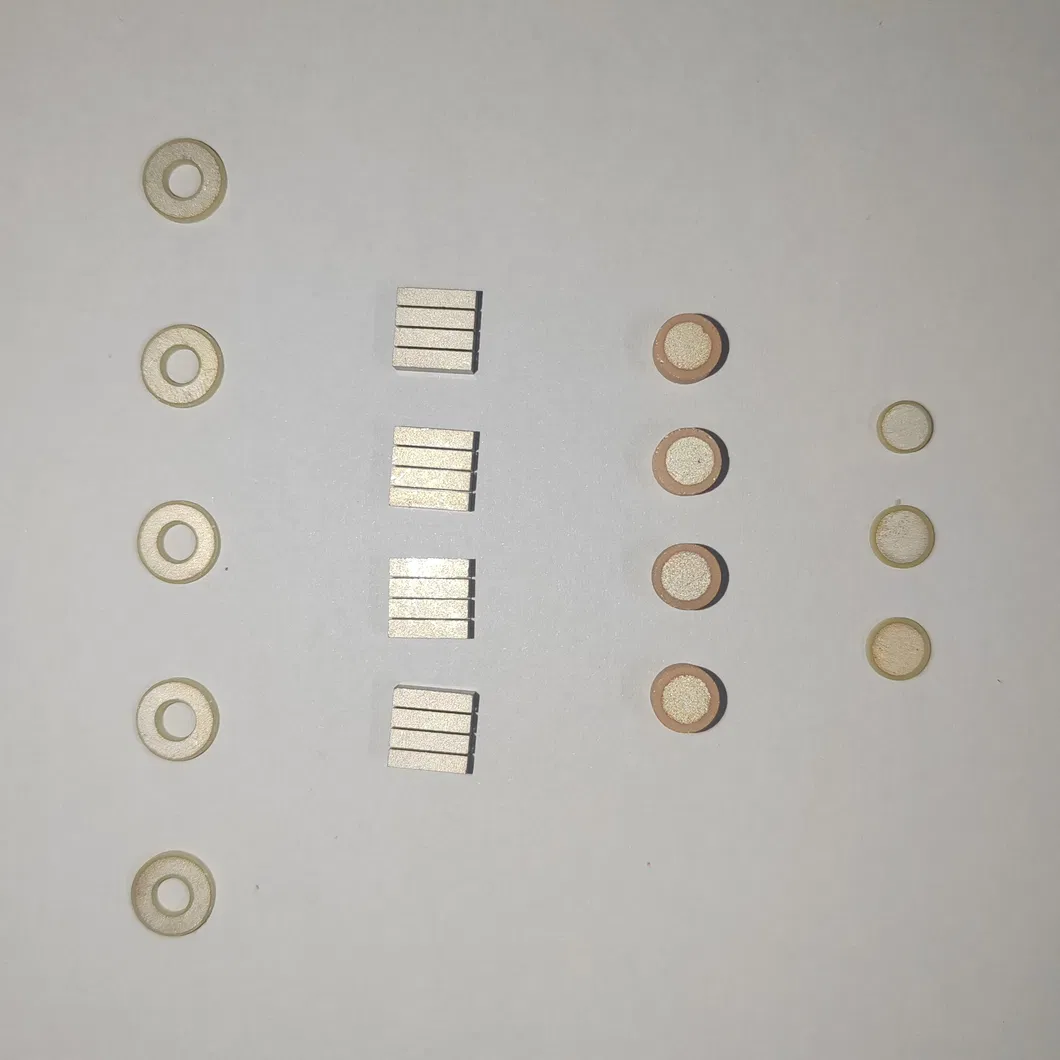

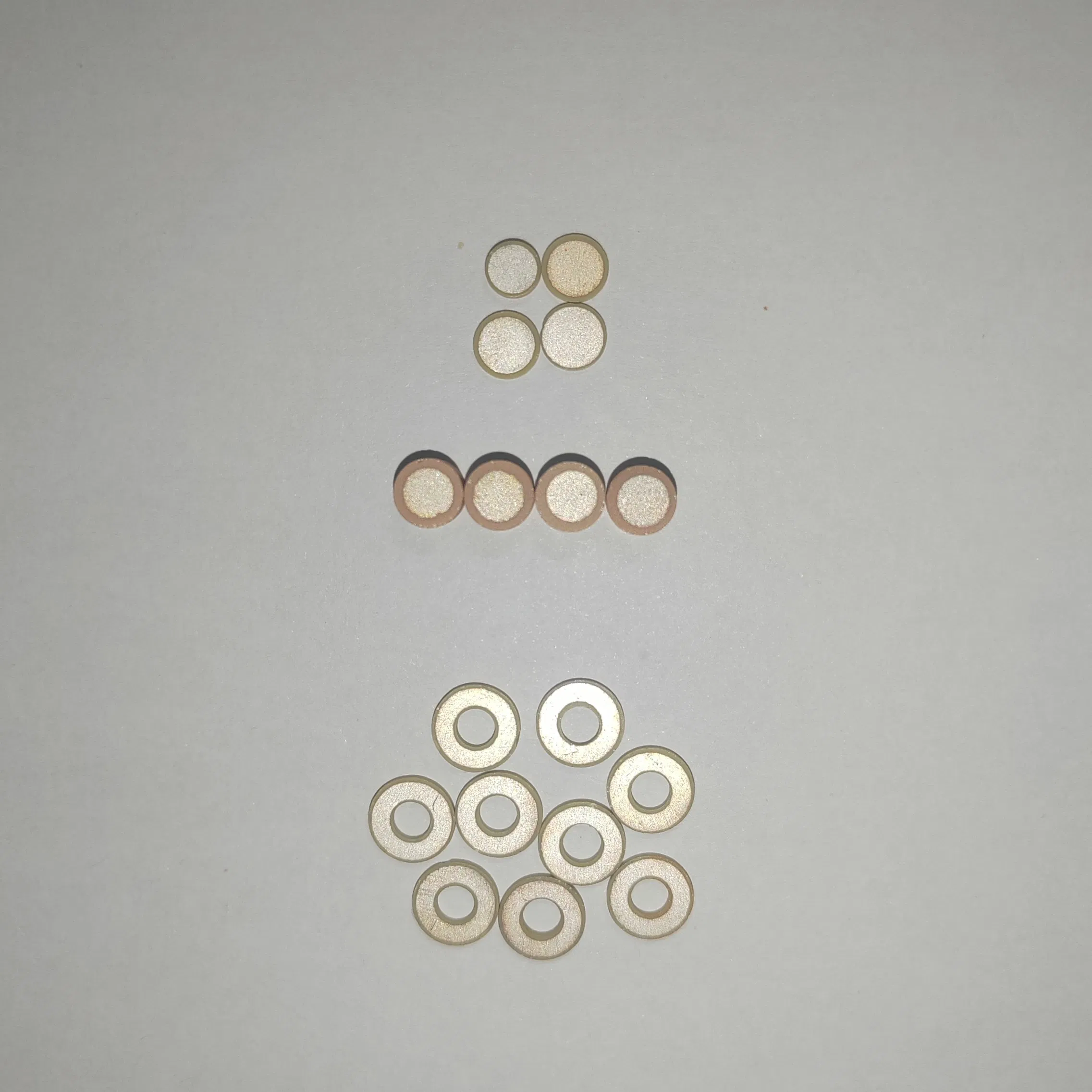

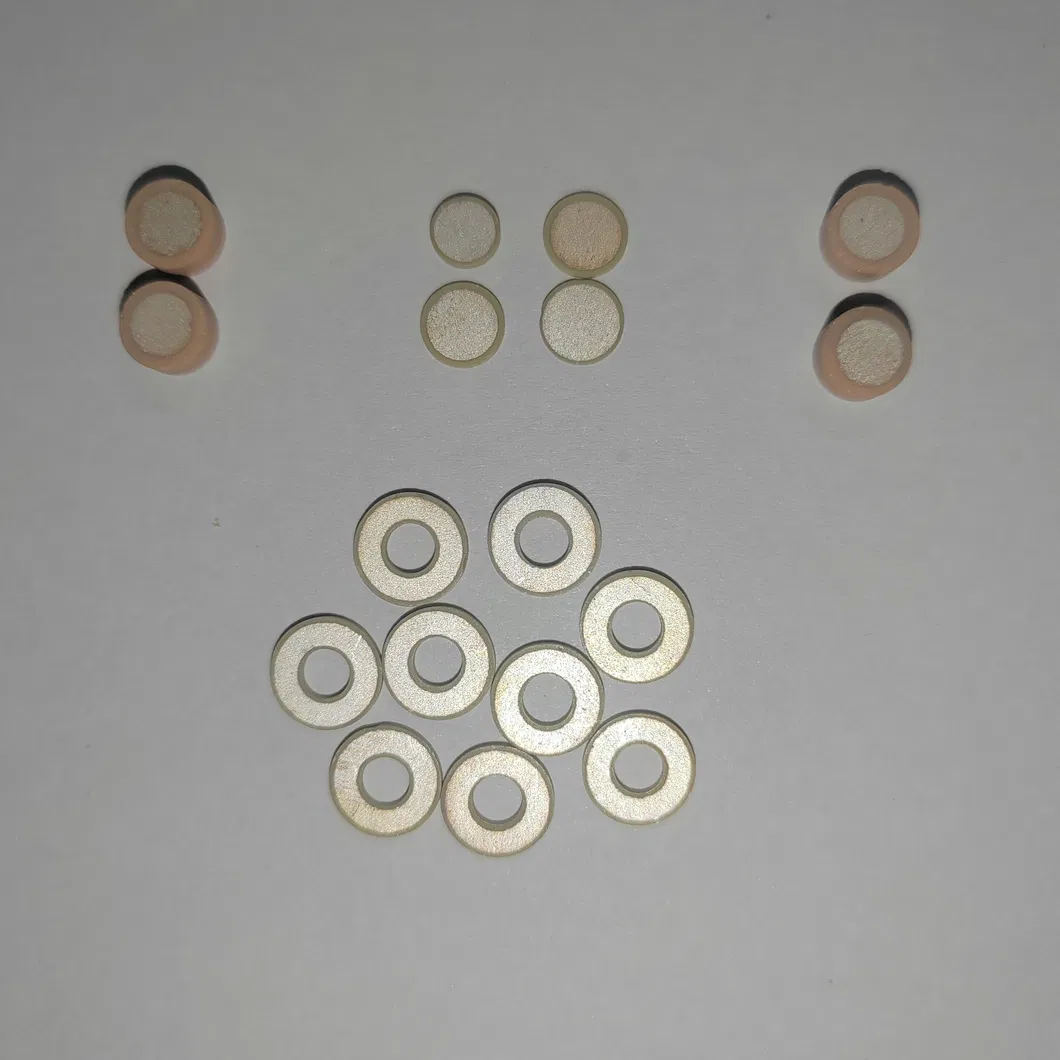

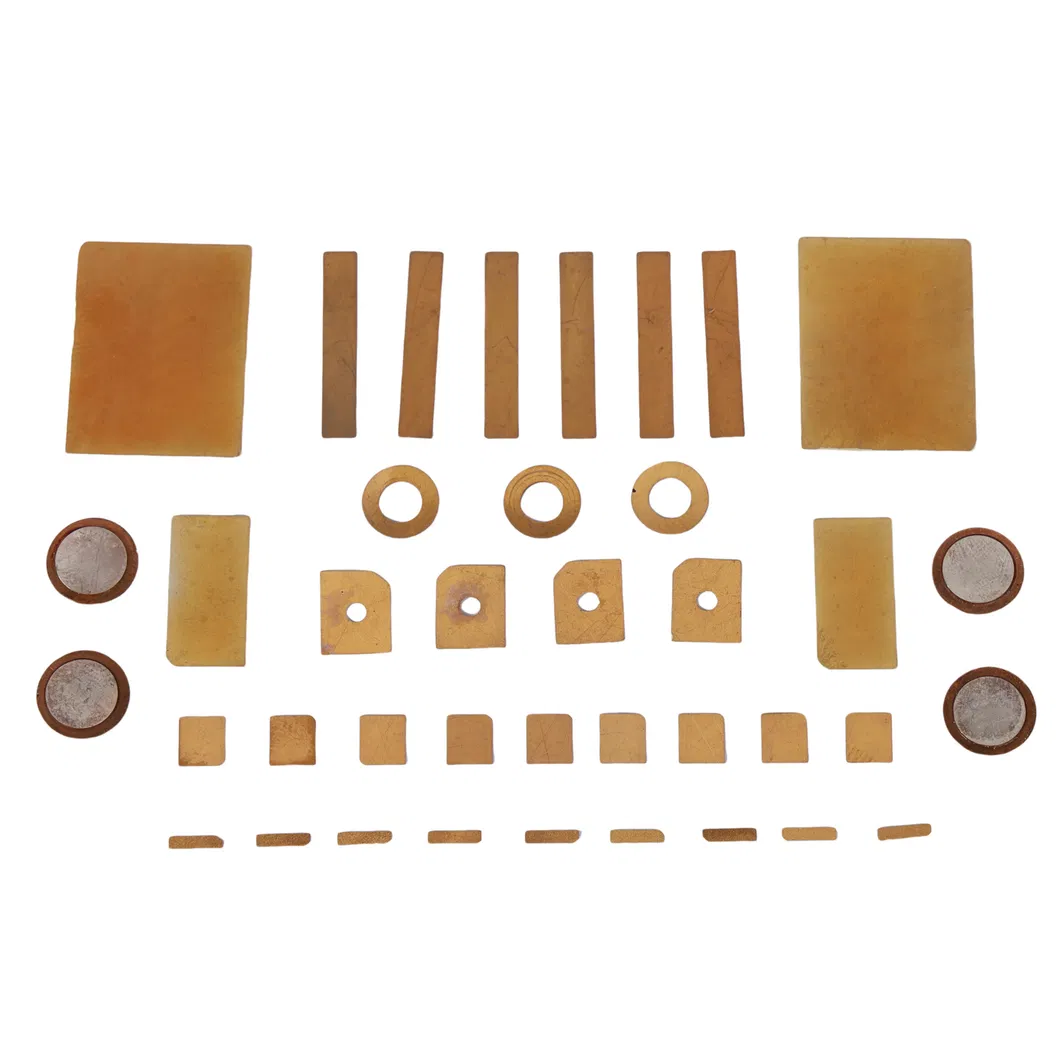

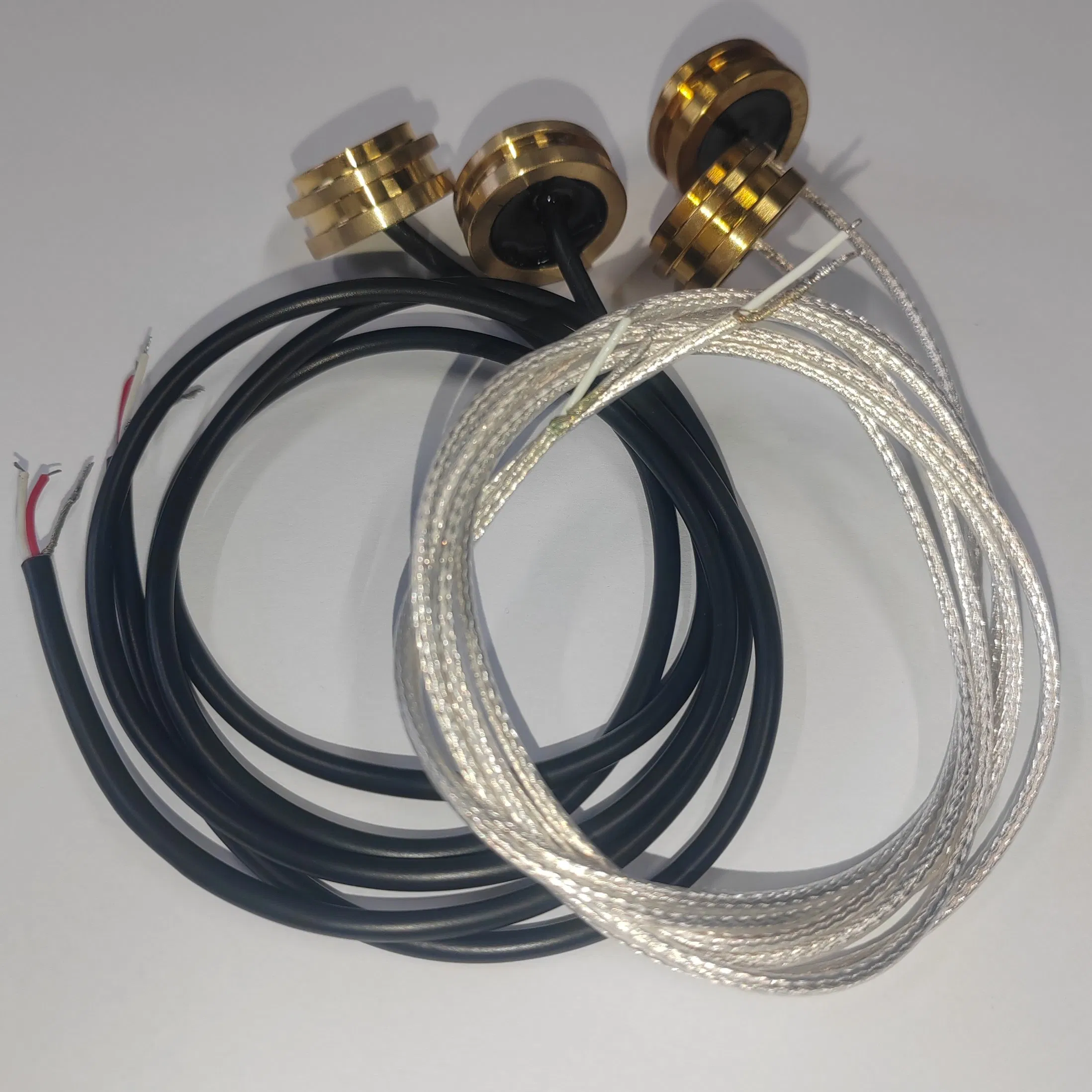

Piezoelectric ceramic components are made of lead zirconate titanate (PZT) as the core material. The structure covers single-layer sheets, multi-layer stacks, and composite cantilever beams. Elements are typically plated with nickel/gold electrodes and encapsulated with epoxy resin to meet standards such as IP67.
A1: We have been concentrating on the manufacturing of piezoelectric ceramic-related products for 18 years.
A2: Small batch orders are also acceptable to meet diverse customer needs.
A3: We support Telegraphic transfer (T/T), Western Union, PayPal, and other standard methods.
A4: Yes, regular samples are provided free of charge. Significant sample costs may be refunded upon placement of a bulk order.
A5: Generally, goods are dispatched within 7 days, depending on the specific order quantity.
A6: All products undergo strict quality inspections and testing protocols before final packaging.
