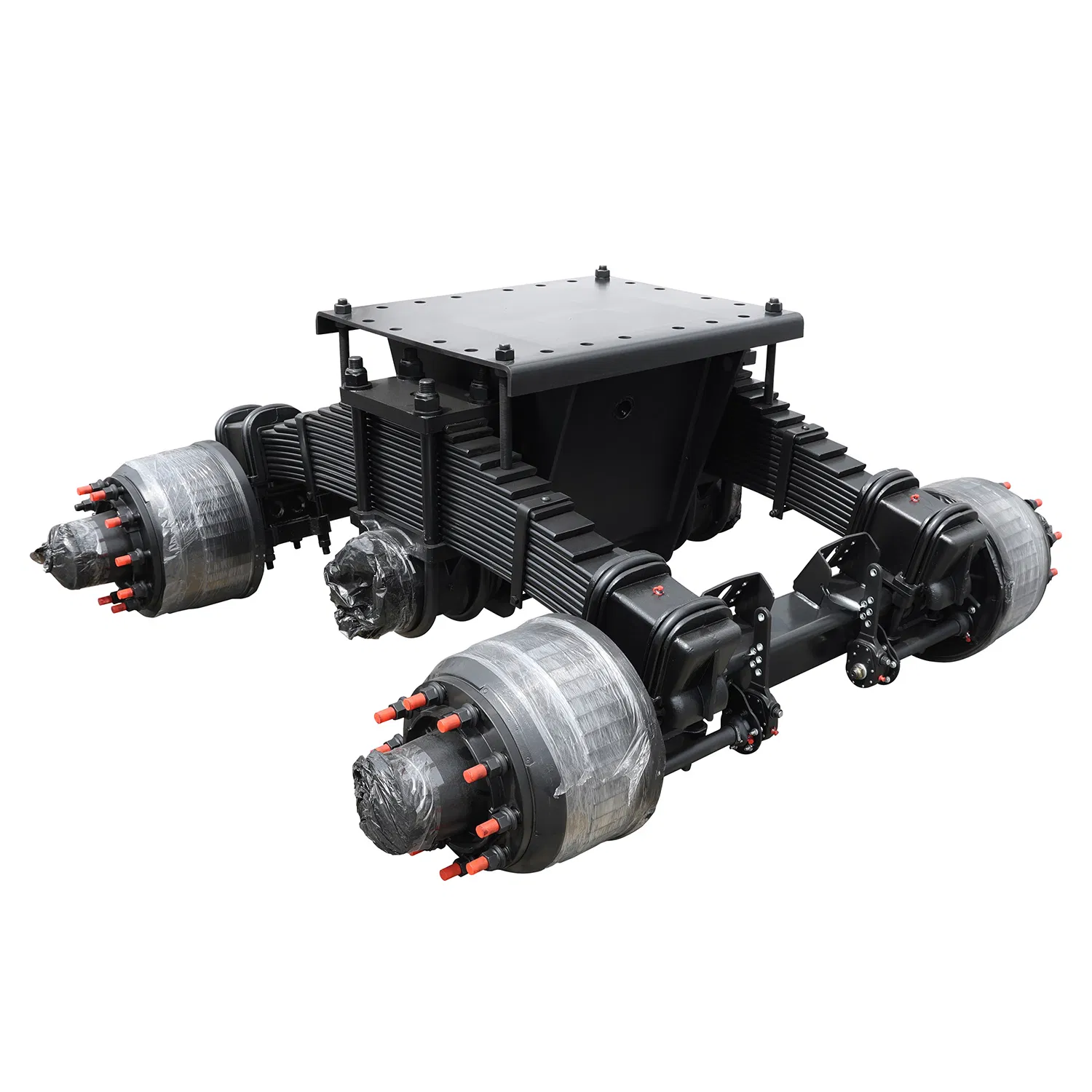

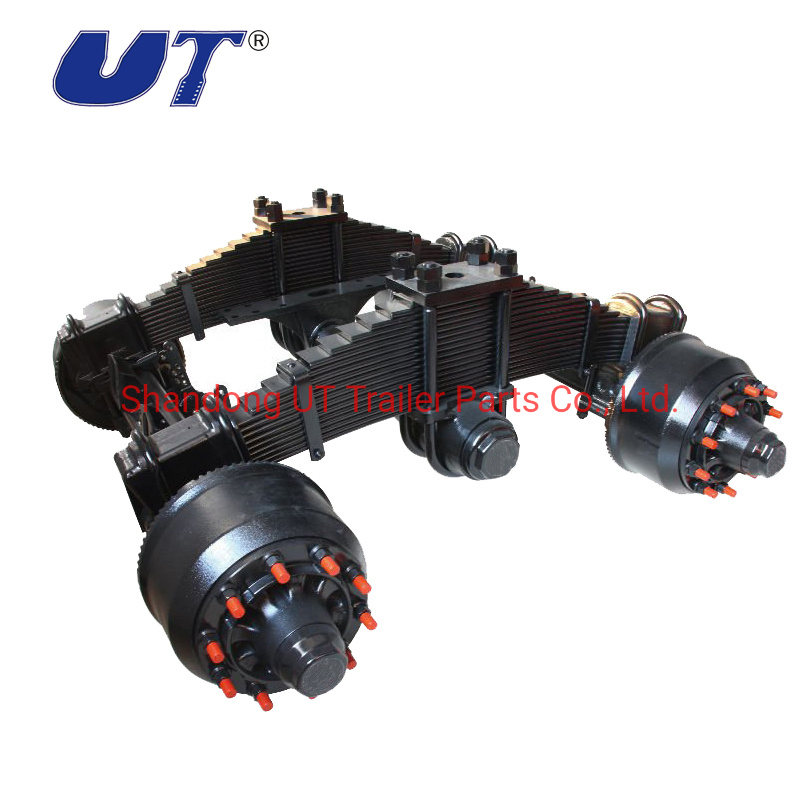

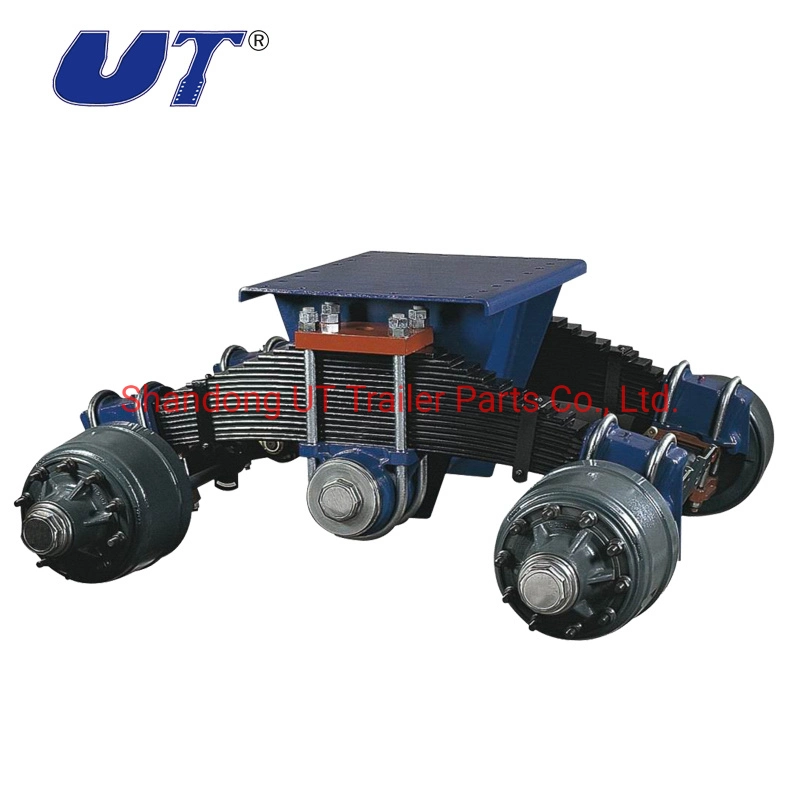

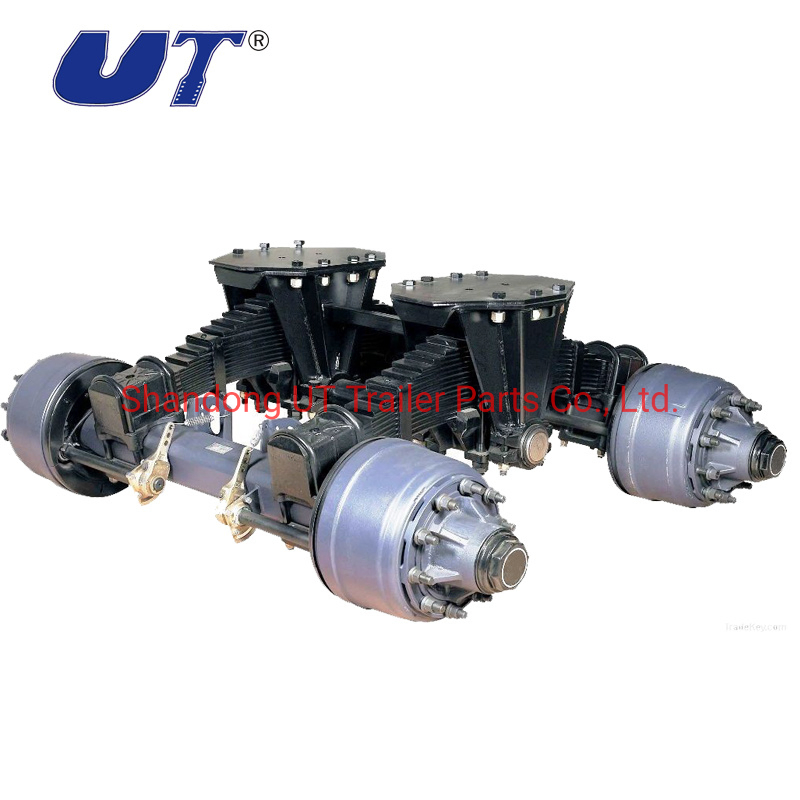

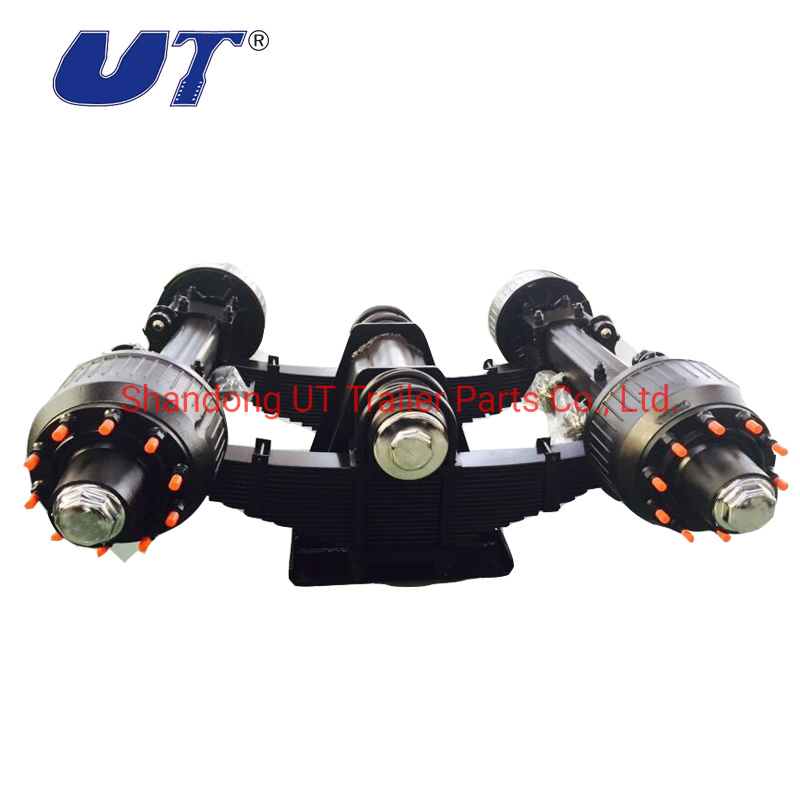

32 Tons Semi Trailer Bogie Suspension BPW Bogie Suspension

Customization: Available
Loading Weight: 32 Tons
Material: Steel

Product Description

Overview & Basic Info
Model NO.
Bpw 32
Axles
Tandem Axle Suspension
Type
Suspension
OEM
Yes
Capacity
24tons, 28tons, 32tons
Warranty
1 Year
Certification
ISO, ISO/Ts16949
Color
Black
Brake
420X200mm / 420X180mm
Track
1870mm
PCD
335mm
Cbd
280mm
Axle Tube
150mm
Trademark
UT
Product Description
Bogie Suspension View 1

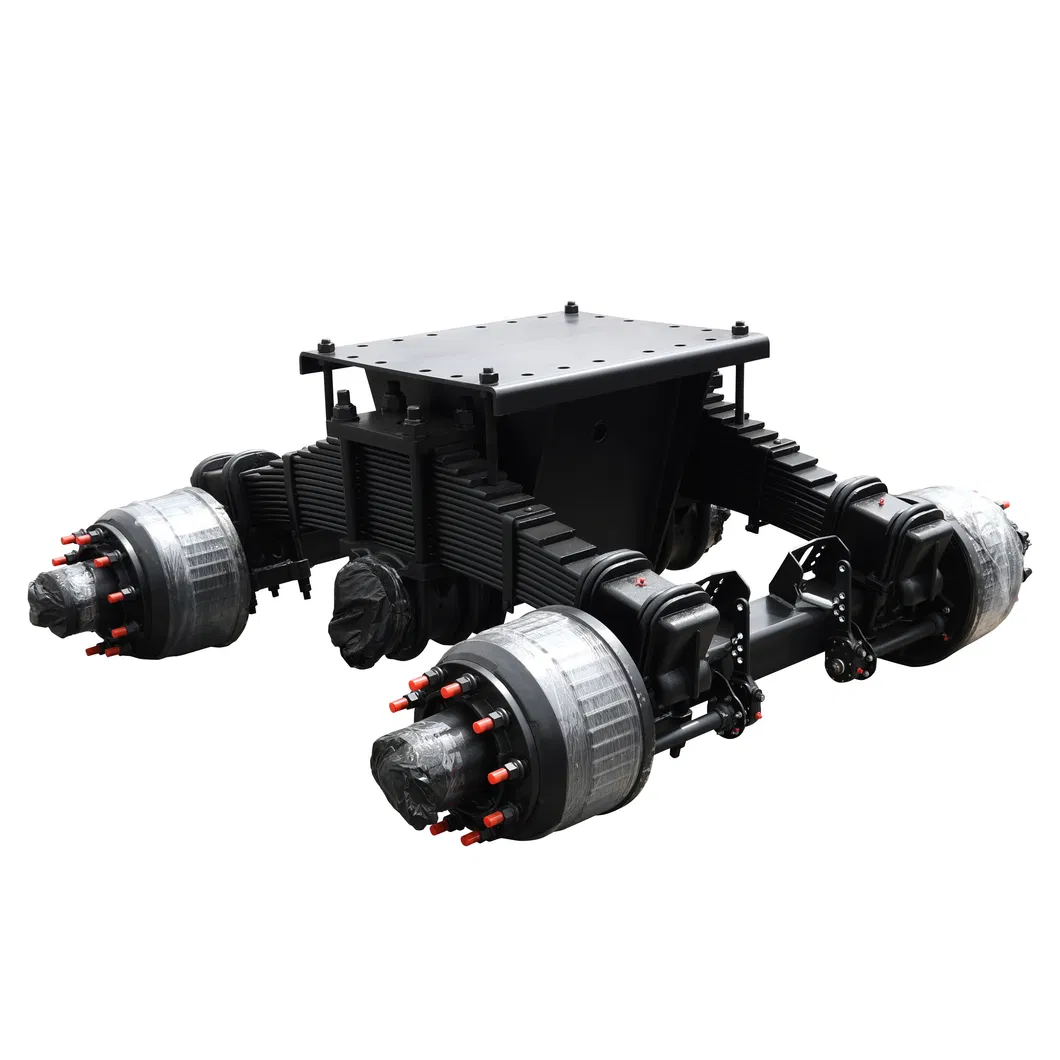

Bogie Suspension View 2
Technical Drawing 1
Technical Drawing 2
Product Parameters

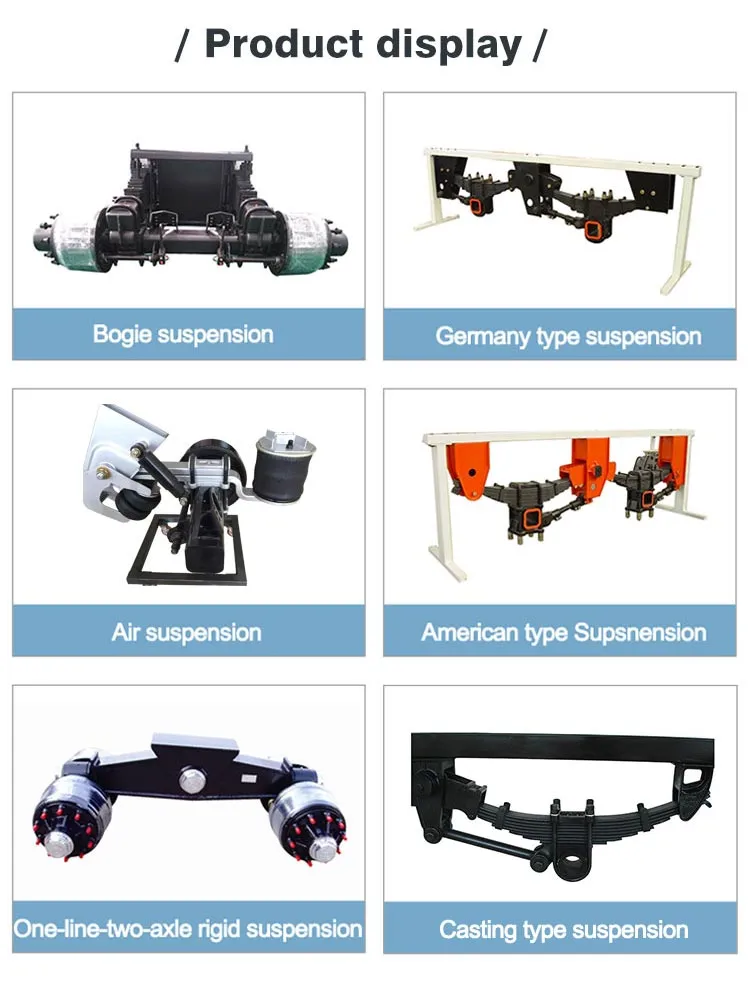

Available Suspension Types:

  • American type suspension
  • Germany type suspension
  • Casting type suspension
  • Rigid / Walking beam suspension
  • Air suspension
Model Weight(kg) Bearing Axle Tube Brake Track PCD Axle Space LxWxH (mm)
UTD24T-180 2020 33118/33213 150x14 420x180 1870mm 335 1385±5 1060x700x12
UTD24T-200 2080 33118/33213 150x14 420x180 1870mm 335 1385±5 1060x700x12
UTD28T-200 2229 33215/33219 150x14 420x200 1870mm 335 1550±5 988x800x12
UTD32T-200 2400 32314/32222 150x16 420x200 1870mm 335 1550±5 988x800x12
Spec Chart

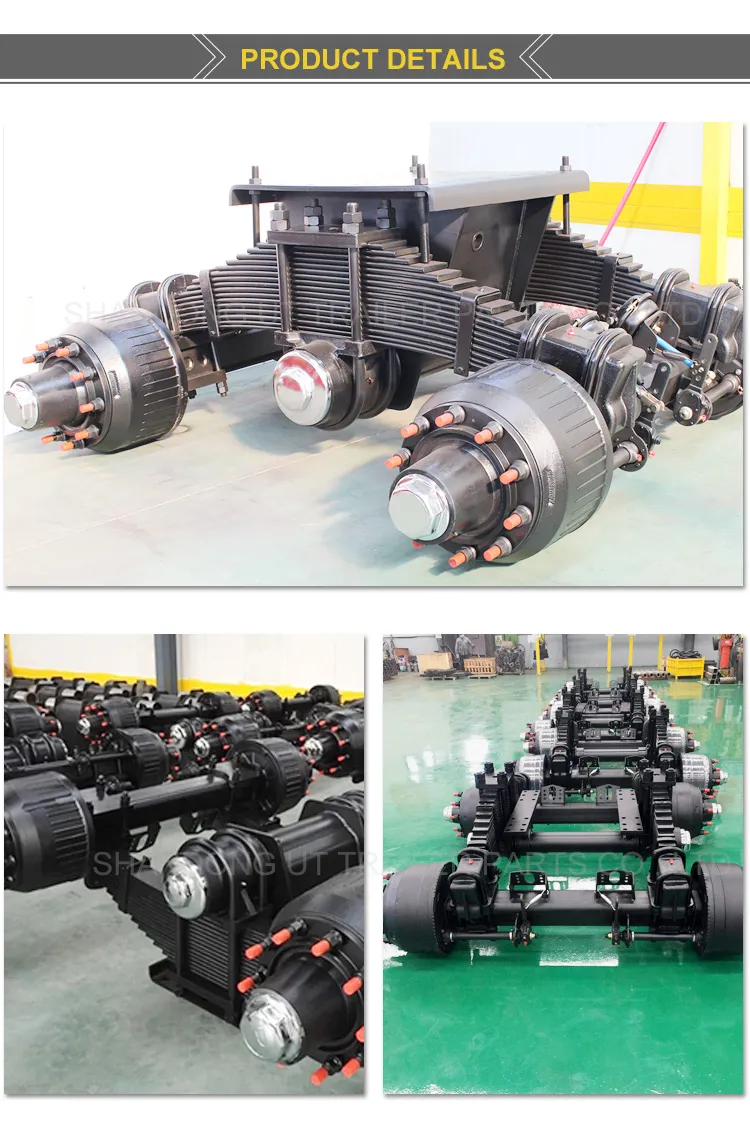

Detailed Component

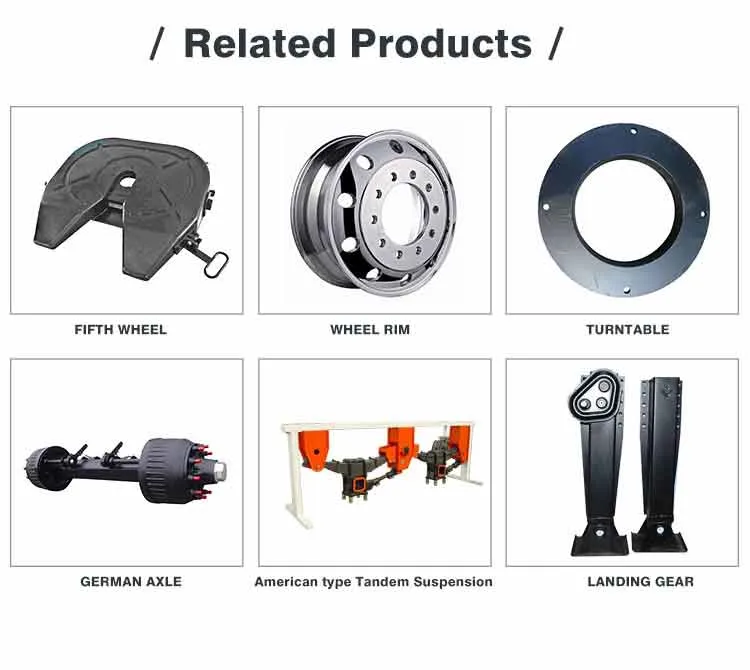

Related Components
  • Mechanical suspension (Casting/Welded)
  • Cantilever suspension (Bogie 24T-32T)
  • Axles (Stud hub or spider, 12-20T)
  • Air suspension systems
  • Landing gear (Single/Twin side)
  • King pins (2" and 3.5")
  • Fifth wheels (Forged/Casting)
  • Leaf springs (75mm-120mm)
  • Wheel rims (Tube/Tubeless)
  • Brake Chambers (T20, T24, T30)

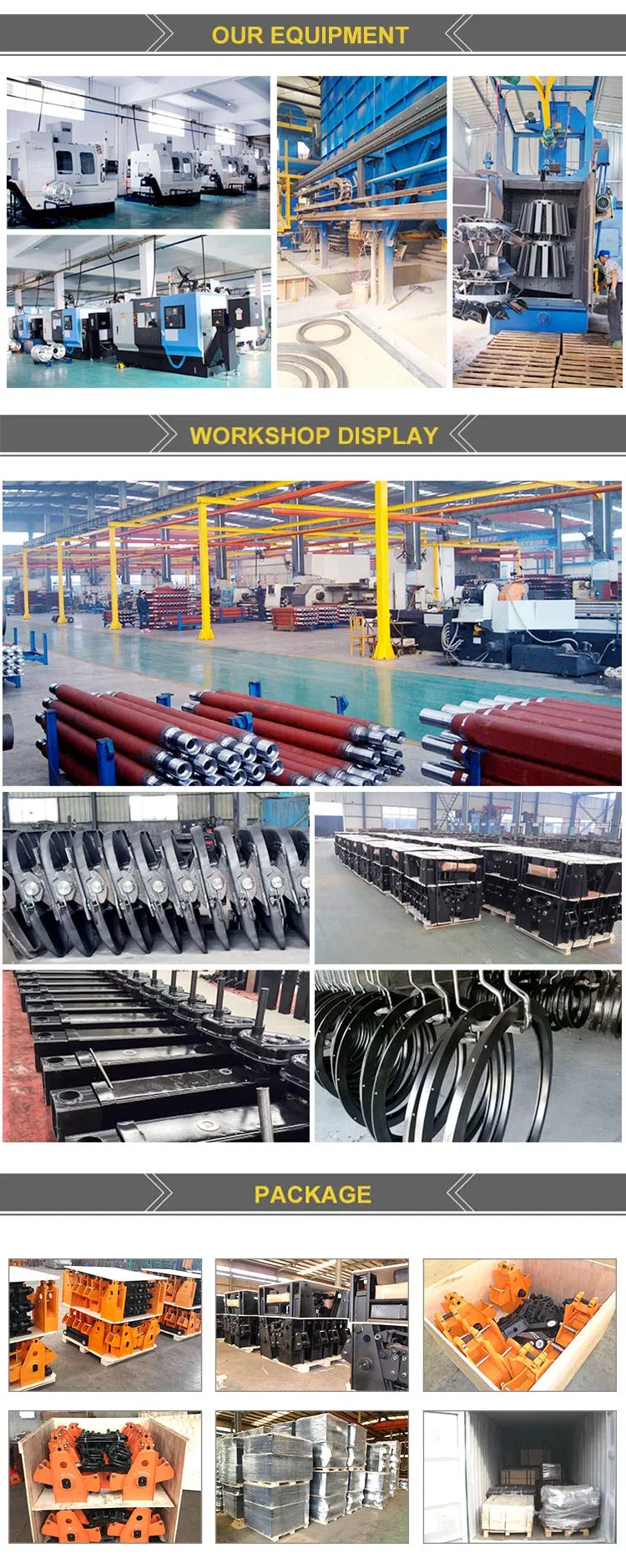

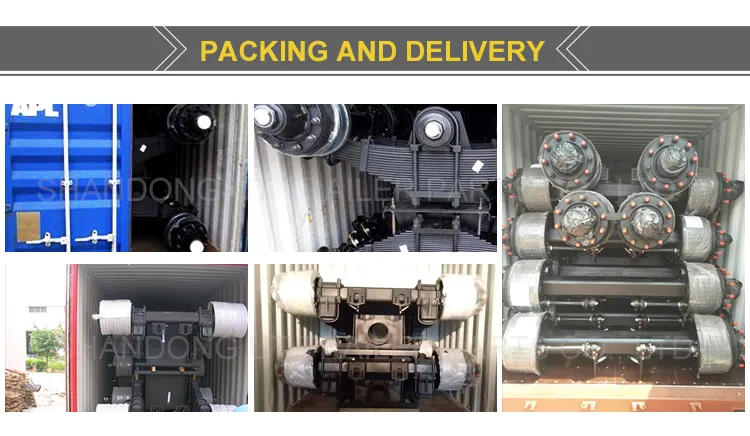

Packaging
Production Line

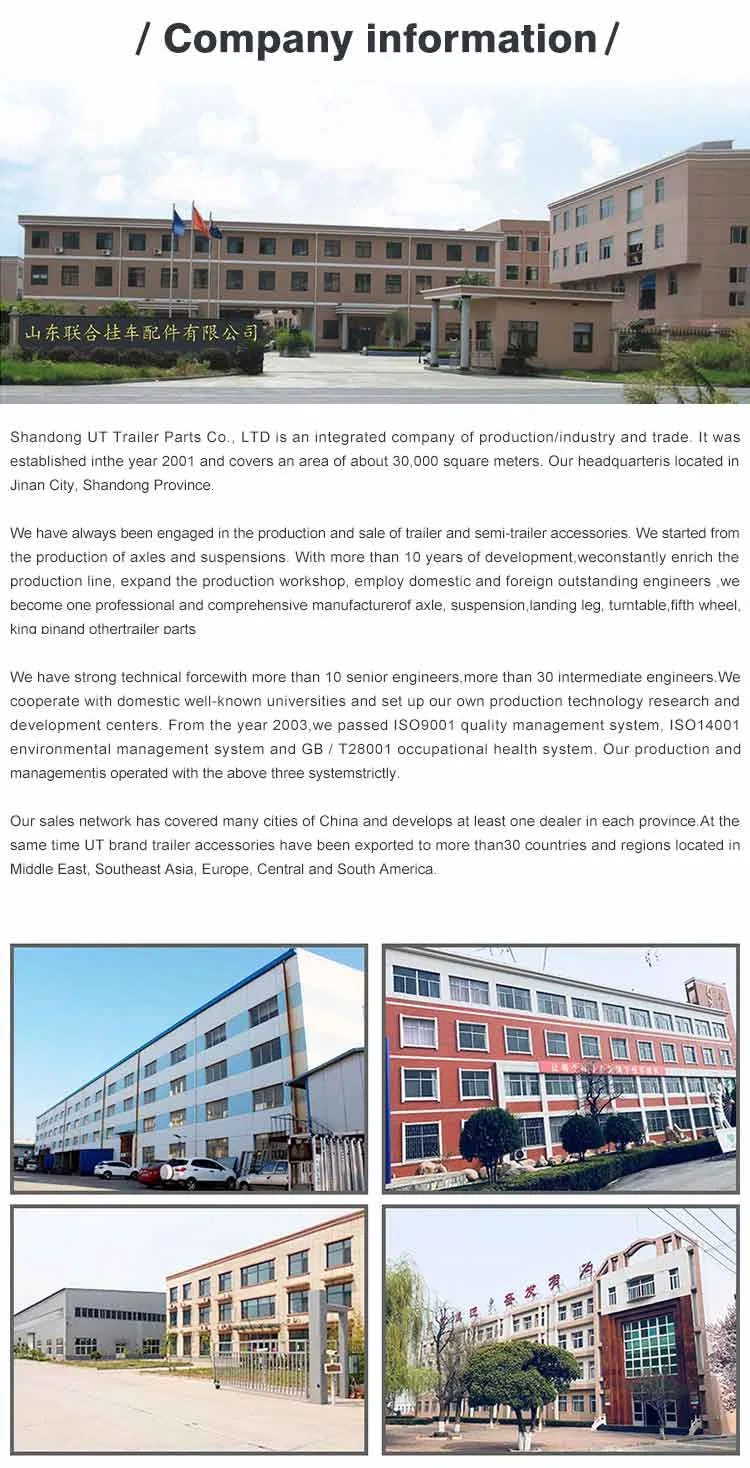

Factory View
FAQ
Q: What is the maximum load capacity for this bogie suspension?
A: This model supports multiple capacities, including 24 tons, 28 tons, and up to 32 tons.
Q: Do you offer OEM services?
A: Yes, OEM services are available for this suspension system to meet specific requirements.
Q: What quality certifications does the product have?
A: Our products are fully certified with ISO and ISO/TS16949 international quality standards.
Q: What is the warranty period for the suspension?
A: We provide a 1-year warranty on our bogie suspension systems.
Q: What brake sizes are compatible?
A: The system supports standard brake sizes of 420x200mm and 420x180mm.
Q: What colors are available?
A: The standard color is black, but other options can be discussed based on order volume.
