Product Description

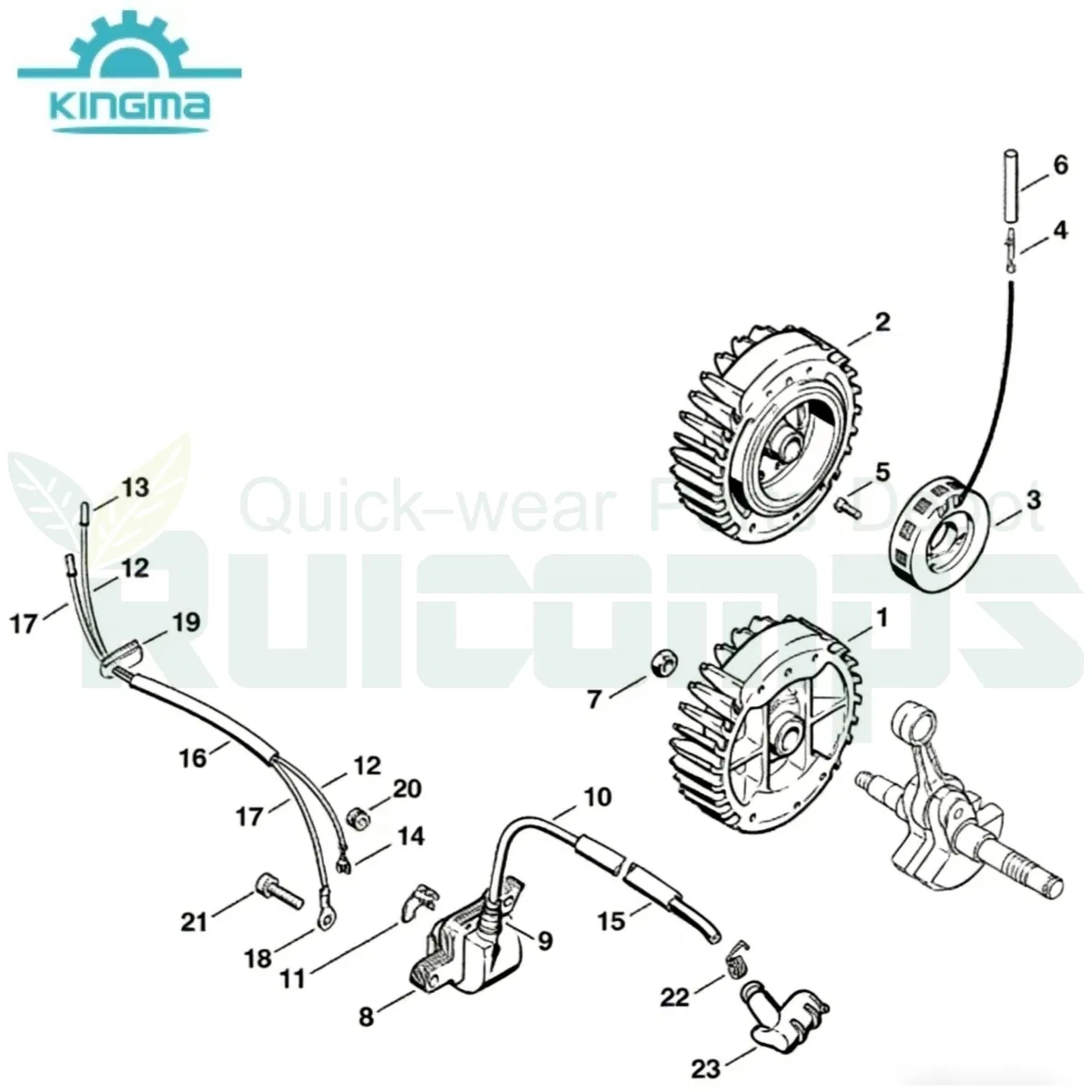

The Ignition System Diagram Parts of S360 represent the integral component set and visual reference system for the S360 Pro chainsaw, a flagship professional-grade power tool renowned for its robust performance in forestry, landscaping, and industrial cutting applications. At the core of the operational efficiency lies its magneto ignition system—a battery-free ignition technology that delivers reliable spark generation and precise combustion control.
At the heart of the S360 ignition system is the flywheel, a precision-machined component that serves as the system's primary energy source. The flywheel features two embedded permanent magnets that rotate in close proximity to the ignition coil, creating a dynamic magnetic field. Crafted from high-strength metal alloys, it is engineered to withstand high rotational speeds.
The ignition module (also known as the ignition coil) is a U-shaped armature with primary and secondary winding sides. It facilitates critical voltage transformation, stepping up current to approximately 20,000 volts—the exact voltage required to create a spark at the spark plug and ignite the fuel-air mixture.
❓
Frequently Asked Questions
What is the primary function of the S360 flywheel?
The flywheel serves as the primary energy source for the magneto ignition system, utilizing permanent magnets to create a magnetic field for battery-free power generation.
How much voltage does the ignition module generate?
The ignition module steps up the low voltage from the primary winding to approximately 20,000 volts, which is required to spark the plug.
What should I do if there is no spark during testing?
Check ignition leads for damage, ensure proper grounding by cleaning rust from mounting surfaces, and verify the ignition module's magnetic gap with the flywheel.
Are these parts compatible with other chainsaw models?
The S360 ignition system is specifically engineered for its model. Using chips or modules from other series like 031 or 041 may cause misfiring.
Why are rubber grommets emphasized in the diagram?
Grommets act as essential vibration dampeners and seals, protecting sensitive electrical components from moisture, dust, and debris in harsh environments.
Is professional installation required for these parts?
While the diagram aids DIY enthusiasts, following specific torque ratings for spline screws and collar nuts is critical to prevent engine damage.
