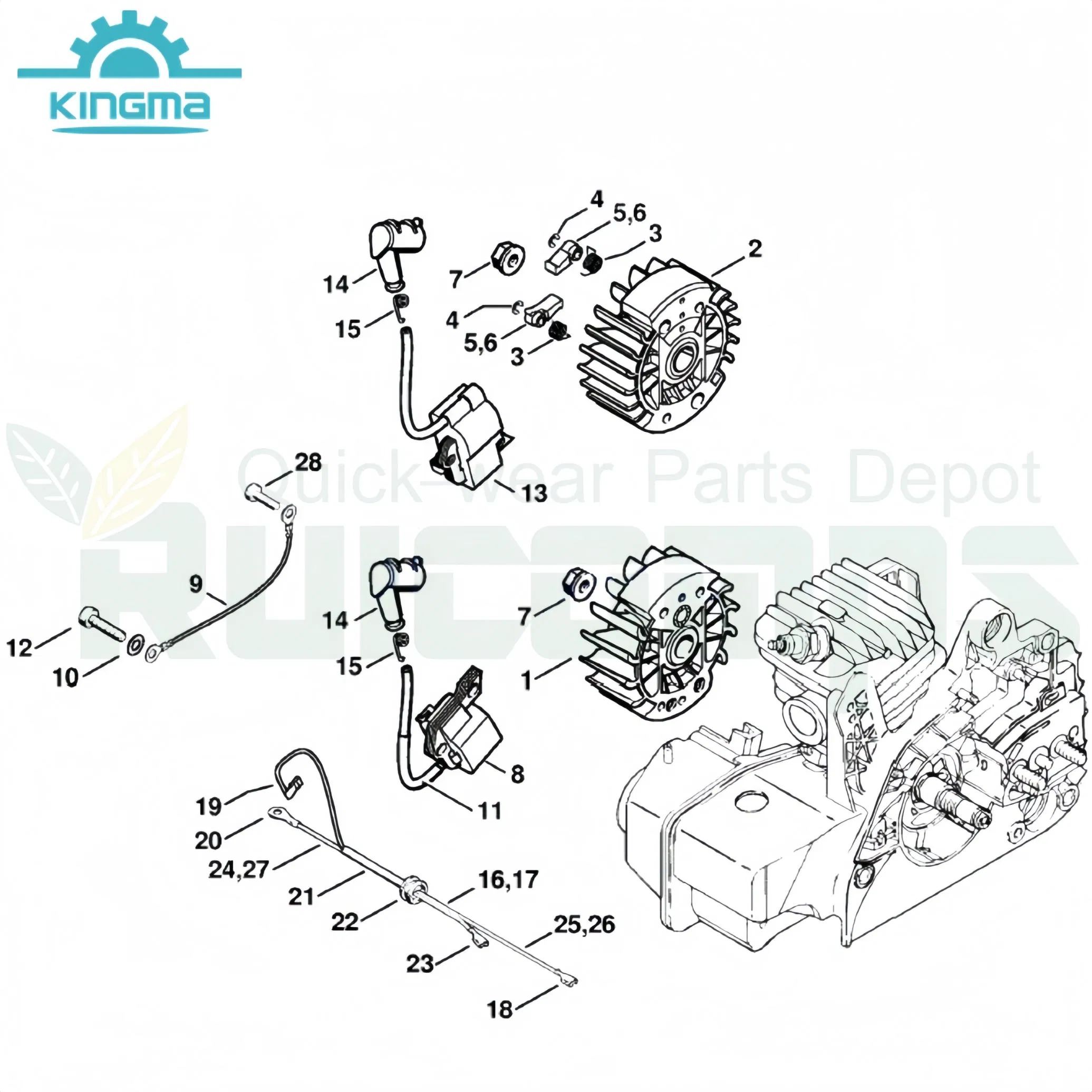

Ignition System Parts Diagram for Ms230

In the core system of small internal combustion engines, the ignition parts stand as the indispensable "energy initiator" and "combustion regulator," whose performance directly determines the engine's startup reliability, power output efficiency, and operational stability. Far beyond the simple function of generating a spark, this integrated assembly works in synergy to convert electrical energy into a precisely timed, high-intensity spark that ignites the air-fuel mixture.

The primary function of these ignition parts is to initiate combustion through a high-voltage spark. The ignition coil transforms low-voltage current into a high-voltage pulse (up to 30,000V). Meticulously engineered with ceramic insulators and precious-metal electrodes, the spark plug channels this pulse to create an intense spark, ensuring a 98% ignition success rate across extreme temperatures ranging from -20°C to 60°C.

Furthermore, these parts optimize ignition timing through an integrated electronic control unit. By monitoring RPM and load, the system advances or retards the spark to maximize power and fuel efficiency. This dynamic adjustment can boost power output by 8-12% while reducing fuel consumption and lower emissions.
