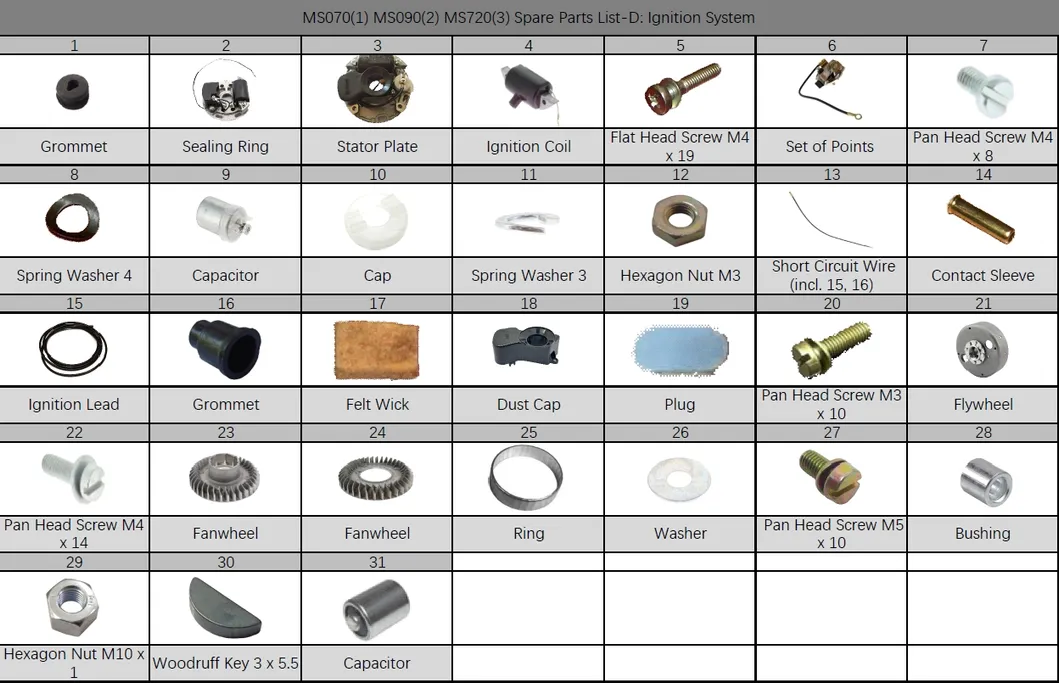

Ignition-System Parts Diagram for Ms 070 090 720

To unlock the full potential of the MS070 chainsaw, one must delve into the intricacies of its ignition system—a cornerstone of engine performance, reliability, and efficiency. The accompanying design diagram details each component with surgical precision, revealing why it stands as a paragon of small-engine ignition technology.

Complementing the flywheel is the Ignition Coil (Component 1). Composed of copper windings around a laminated iron core, the coil transforms low-voltage energy into high-voltage sparks (exceeding 20,000 volts) required to ignite the air-fuel mixture. Encapsulated in heat-resistant epoxy, it is designed to withstand extreme engine temperatures and mechanical vibrations.

The Ignition Module (Component 3) acts as the system's brain. This CDI unit timings the spark with millisecond precision, maximizing power output and fuel efficiency. It resists temperature extremes and moisture, ensuring reliability in harsh professional environments.

Delivering the spark is the Spark Plug Cap (No. 30), providing an insulated connection to prevent high-voltage arcing. Supporting hardware like the Flywheel Key (No. 28) ensures proper indexing to the crankshaft. Even a slightly sheared key can cause misfires, highlighting the importance of precision in every small part.
