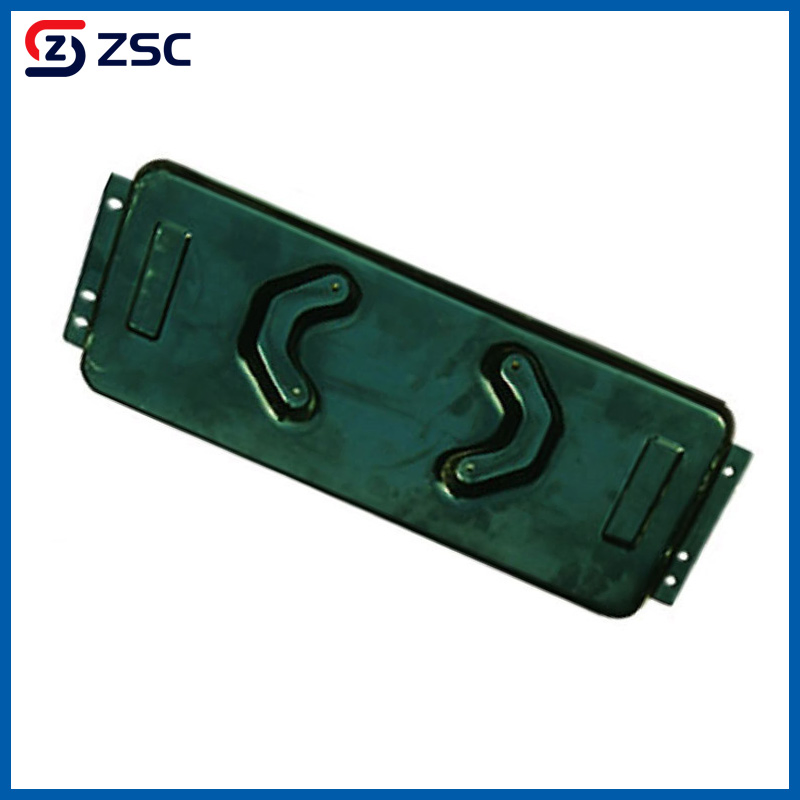

Customizd Chassis Mounting Bracket Oil Pan Shield Transmission Guard Sheet Metal Steel Stamping Parts

1 / 5

Customizd Chassis Mounting Bracket Oil Pan Shield Transmission Guard Sheet Metal Steel Stamping Parts

Customization:	Available
Type:	Cold Stamping
Processing Type:	Shaping Metal

Send Inquiry

Product Description

Basic Information

Model NO.

ZSC-FM-001

Material

According to Customer's Drawing

Mould

Simple Single Process Dies

Surface Processing

Spraying

Fine Blanking

Open

Process

Forming Process

Industry

General Stamping

Tolerances

0.01mm

Thickness

0.01-6mm

Trademark

ZSC

Production Capacity

50000PCS One Month

HS Code

730890000

Packaging & Delivery

Package Size

80.00cm * 60.00cm * 40.00cm

Gross Weight

17.000kg

Product Description

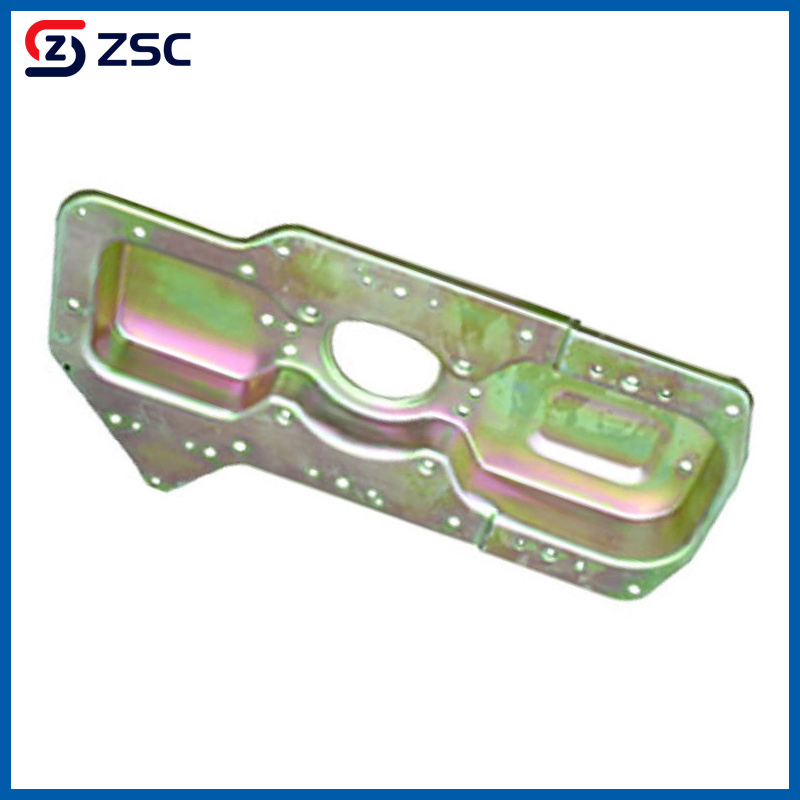

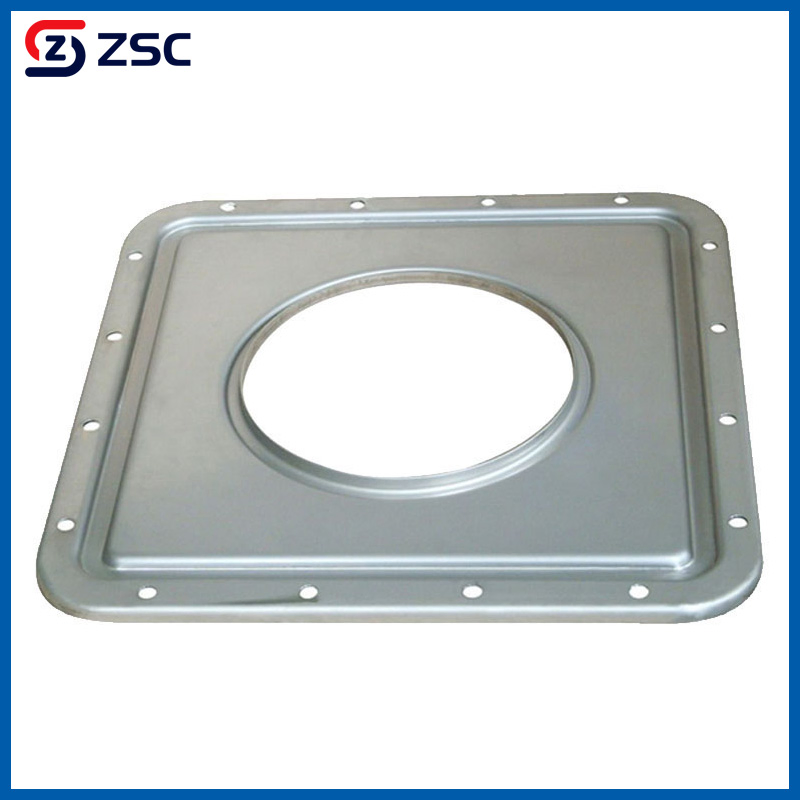

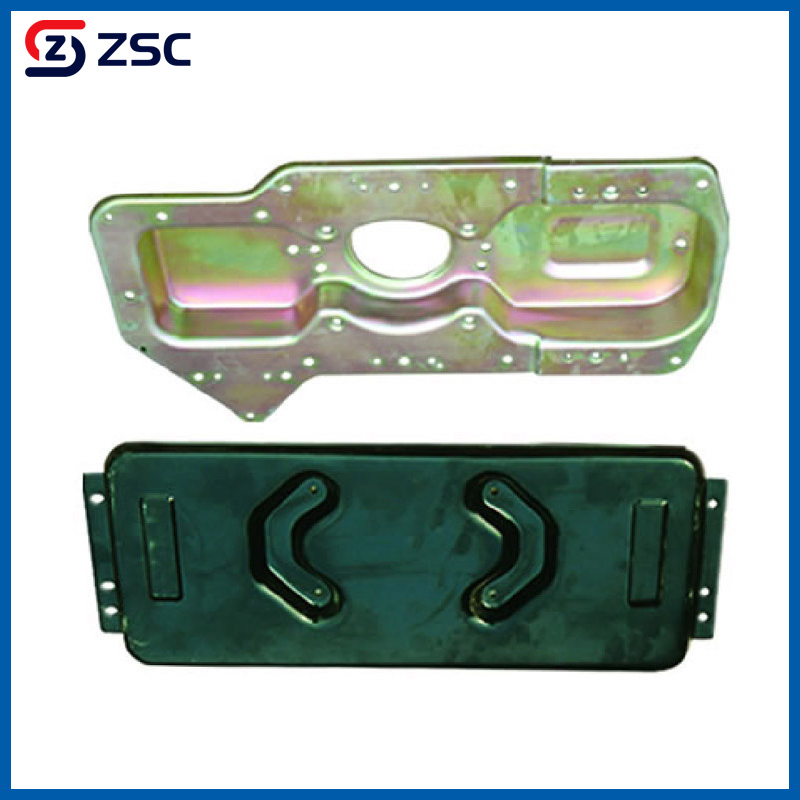

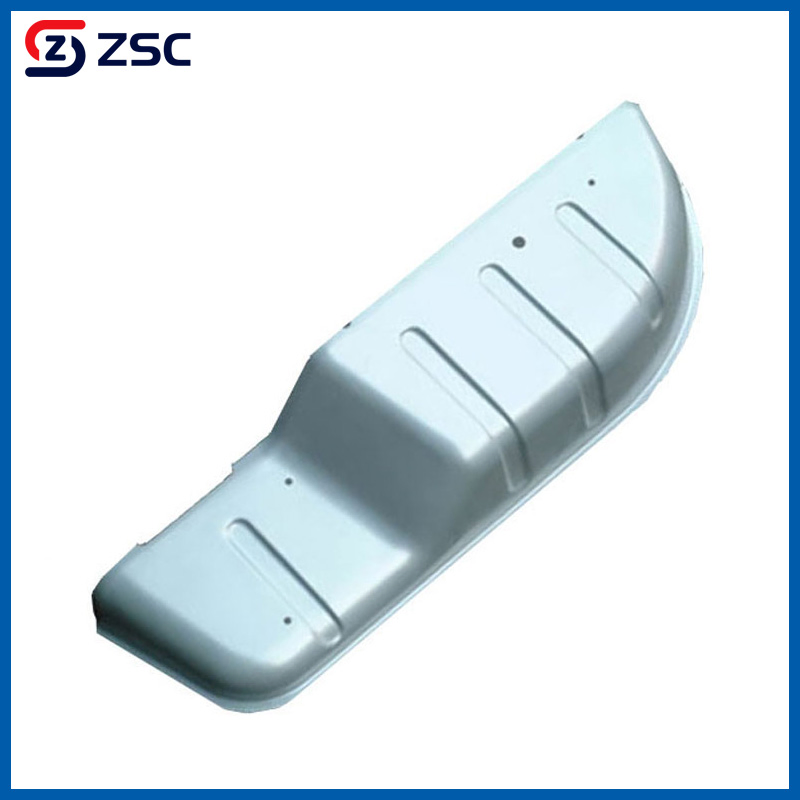

This type of galvanized, stamped bracket is predominantly used in the automotive industry, specifically for undercarriage and chassis applications. Key functions include:

Protection: Serving as a skid plate or shield for oil pans, transmissions, or fuel tanks to guard against road debris and corrosion.
Structural Mounting: Acting as a robust structural bracket for securing parts to the vehicle's frame.
Durability: High strength stamped steel with hot-dip galvanized coating for harsh environments.

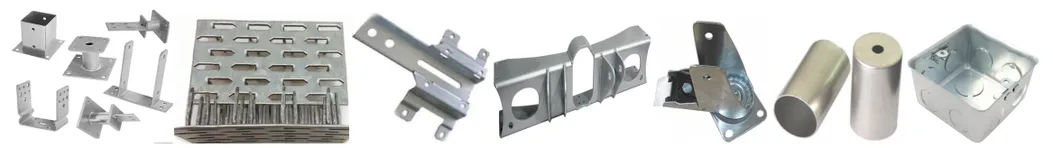

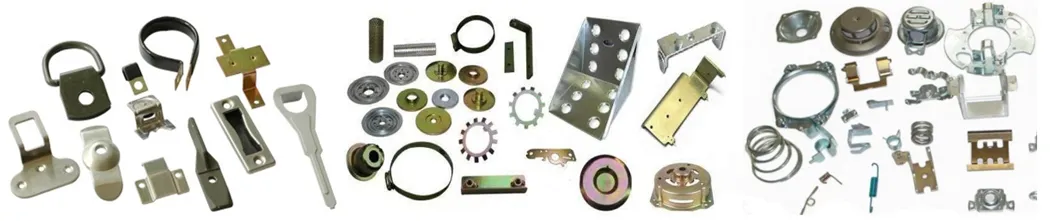

Product Show

Why Choose Us?

Quality Control: Own factory allows for rigorous quality monitoring.
Experience: Over 30 years specialized in metal parts manufacturing.
Expertise: Rich experience in interpreting drawings and providing cost-saving professional advice.
Equipment: Professional inspectors and testing equipment ensure product integrity.

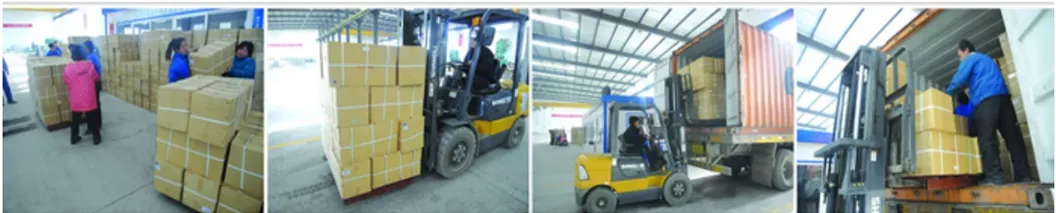

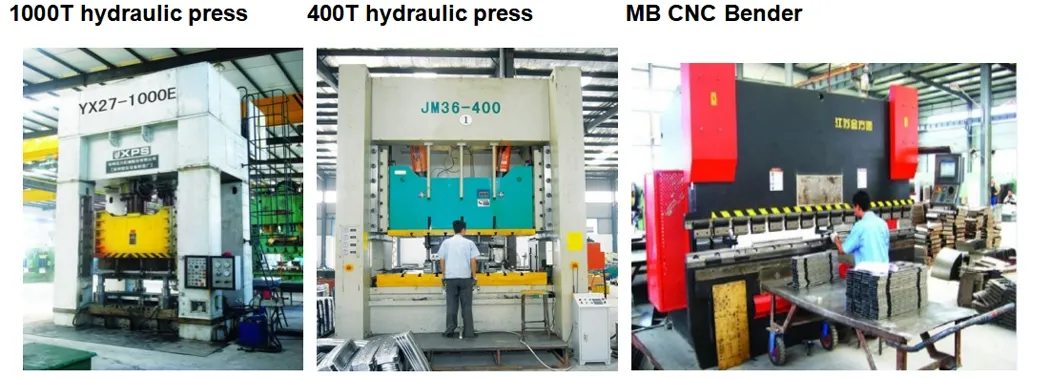

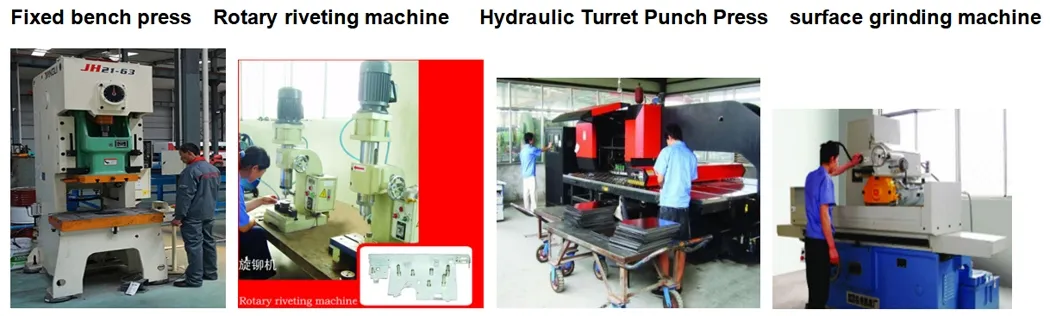

Equipment & Packing

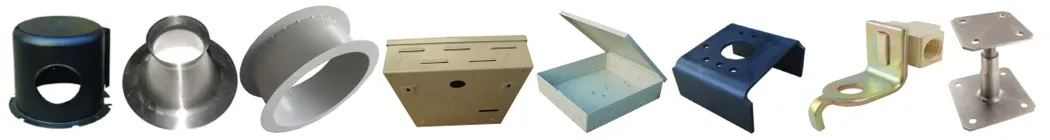

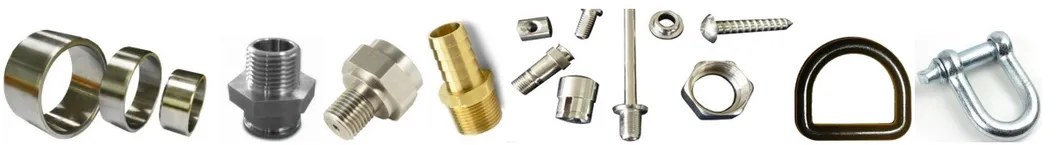

Business Scope & Craft Steps

Step	Process Description
1	Get customer's drawing or sample
2	Study drawings & Quote to customer
3	Design, make, test and modify mould
4	Produce and send samples with test report
5	Mass production upon sample confirmation
6	Inspection, packing, and shipping

Frequently Asked Questions

What materials can you process for metal stamping?

We work with Carbon steel, Stainless steel, Spring steel, Aluminum, Aluminum alloy, and Galvanized steel.

What is the typical tolerance for your stamping parts?

For stamping parts, our tolerance range is 0.01mm to 0.1mm. For CNC machining parts, it can reach 0.002mm.

Do you provide samples before mass production?

Yes, we supply pre-production samples for final customer confirmation before starting mass production.

What surface treatments do you offer?

We offer polishing, zinc plating, powder coating, blackening, E-coating, anodizing, and nickel/chrome plating.

What is your monthly production capacity?

Our current production capacity is approximately 50,000 pieces per month.

What industries do your products serve?

Our parts are used in automotive, medical instruments, construction, wind power, solar, and general mechanical industries.
